.NET Interop for Visual FoxPro Applications
By Rick Strahl
http://www.west-wind.com/
Last Update:
September 23,
2002
Code for this
article:
http://www.west-wind.com/presentations/VfpDotNetInterop/VfpDotNetInterop.zip
This document covers:
Note: The code
listings in this article use C# for .NET code and Visual FoxPro for COM or
client code.
Now that .NET is here you've undoubtedly have the urge to use or
at least play with the new functionality that the platform provides.
Unfortunately migrating to .NET from Visual FoxPro (or most other development
languages) is a big step that requires a steep learning curve. Integration
between the old and the new will be crucial as a first step to provide for the
ramp up time that's needed to get up to speed on the new platform as well as
providing vital links between old and new applications. In this article Rick
looks at the most common ways that you can use to integrate logic and data
between Visual FoxPro and .NET.
Like any new development platform or environment, .NET
introduces a brand new environment and many new concepts for developing
applications. To us as developers this usually means that there's a large
learning curve involved in understanding the new platform, finding the the most efficient ways of performing common tasks and
working around the limitations of the new environment. Although Microsoft will
be pushing hard to convert as many developers to .NET as quickly as
possibility, it's obvious that the transition to an all .NET world will take a fair
amount of time to accomplish.
For this reason, it's vital that there are mechanisms
readily available to share non-managed .NET code with managed .NET code and
vice versa. If you've been reading the trade press, you've undoubtedly heard
that Web Services are one of the biggest features of .NET and one of the big
selling points of Web Services of course is the fact that they can be accessed
by many different kinds of development environments both old and new. However,
Web Services are only one of the options available for interoperating and
probably the least likely to be useful for extending the life of old applications.
As in previous updates of development environments data
access through standard data access components make it possible to directly use
data from various different data sources including Visual FoxPro. Visual FoxPro
7 sports a new OleDb driver which improves
significantly on some of the limitations of the VFP ODBC driver and makes it a
capable provider for accessing data directly from .NET applications even if
there are a number of features that are useful for .NET that are missing.
Prior to .NET, COM has been the primary interop
mechanism that applications could use to communicate amongst each other and
.NET provides extensive support for COM. You can both access COM components
from .NET and expose .NET components through COM through its Runtime Callable
Wrapper (RCW) which provides a COM wrapper around the .NET runtime.
I'll go over each of these approaches and in the process
point out some issues that you need to watch out for. As all tools geared
toward providing backwards compatibility they rarely provide all the
functionality that was provided by the original implementations, so some things
require special attention or changes to properly work in a .NET interop environment.
Although this article discusses Interop
mechanisms in general I'll focus more specifically on ASP.NET as this is likely
the most used platform of .NET technology at this point. Keep in mind that the
same principles apply to Windows Forms or even Console applications. ASP.NET
however introduces some additional considerations because it is a server based
technology and requires special considerations for performance and scalability.
So I'll use ASP.NET in this article as my vehicle to describe most of these
technologies.
Accessing VFP Data with OleDb
This hardly qualifies as an eye opening topic, but OleDB support in Visual FoxPro 7.0 has been significantly
updated over the existing ODBC implementation that makes it more realistic to use
VFP data via a generic driver, especially in an ASP.NET Web environment.
By using the OleDb driver you have
the ability to use ADO.NET and the DataSet style
implementation given some limitations that I'll discuss later on. Performance
of the driver is adequate although as we'll see still a bit of a bottleneck
compared to native performance using pure Visual FoxPro code or code loaded
from COM objects. The new OleDb provider is also
multi-threaded and can run multiple queries simultaneous, which was probably
the biggest problem with the ODBC driver when used in ASP and now ASP.NET
applications.
To demonstrate the basic principles of OleDb
access against a Fox data source I'll build a small and simplistic sample
ASP.NET Web Form applet that lets you browse and edit entries in the TASTRADE
sample database shipped with Visual FoxPro.
File Access requirements for ASP.NET
If you plan to use ASP.NET to access VFP via OleDb you have to make sure that your data directories are
properly configured to allow the ASPNET user full access to your data paths.
ASP.NET runs under this user by default although you can change the actual
account in Web.config if you choose. Whatever account
you use this account must be able to have full NTFS access rights in the data
directories where data is read from and written to. You can use Explorer and
the Security tab to accomplish this.
Simple DataSet retrieval
But before I do this let me just give you a small example
that demonstrates the basics of creating a DataSet
with VFP data on an ASP.NET form. This example consists of a very simple
ASP.NET page that contains only two controls: a label to show error information
(lblErrorMsg) and a DataGrid
(oCustList) to display the data from a query against
VFP data. The following code is the CodeBehind page
that uses a separate GetCustomerList() method on the form to perform the data retrieval into a DataSet (Listing 1).
using System.Data.OleDb;
namespace ASPInterOp
{
public class
SimpleDataSet : System.Web.UI.Page
{
OleDbConnection oConn = null;
DataSet oDS =
null;
protected
System.Web.UI.WebControls.DataGrid oCustList;
protected
System.Web.UI.WebControls.Label lblErrorMsg;
private void Page_Load(object sender,
System.EventArgs e)
{
if (
this.GetCustomerList("CustomerList") )
{
this.oCustList.DataSource = this.oDS.Tables["CustomerList"];
this.oCustList.DataBind();
}
}
private bool
GetCustomerList(string lcCursor)
{
// Put user
code to initialize the page here
this.oConn
= new OleDbConnection("Provider=vfpoledb.1;" +
@"Data Source=D:\Programs\vfp70\Samples\Data\testdata.dbc;" +
"Exclusive=false;Nulls=false");
try {
this.oConn.Open();
}
catch(Exception ex)
{
this.lblErrorMsg.Text = ex.Message;
return
false;
}
string
lcSQL = "select company, contact, city from customer";
OleDbDataAdapter oAdapter = new OleDbDataAdapter(lcSQL,this.oConn);
if
(this.oDS == null)
{
this.oDS
= new DataSet();
}
try
{
oAdapter.Fill(this.oDS,lcCursor);
}
catch(Exception ex)
{
this.lblErrorMsg.Text = ex.Message;
return
false;
}
finally
{
this.oConn.Close();
}
return true;
}
}
As you can see it takes a fair amount of code in the GetCustomerList()
method to do this, but the code is pretty straight forward. You start with a
connection object that is passed an OleDb connection
string that points at the VFP OleDb driver and a path
to a DBC or a free table directory (if you don't include a DBC tables are
treated as free tables).
Next a DataAdapter is created. The
DataAdapter is the 'data retrieval' object. It knows
how to talk to the data source and return the data in a specified format. The
adapter is specific to the backend used, just as the connection is. Hence the
class name is OleDbDataAdapter.
If you go against SQL Server you can use the SqlDataAdapter instead, which is
the SQL Server specific implementation that bypasses OleDb.
With VFP you have to use the OleDb adapter and
connection objects.
The adapter acts as the intermediary that's used to query
the data from the database and return a result to the application. Natively a DataAdapter returns a DataReader,
which is basically a stream of forward only data. Using the DataReader
to retrieve the data is the most efficient way to get the data if you only need
to display data and don't need any special filtering or jump through the data.
The DataReader stream is also used
internally by the DataAdapter and can be used to
create other objects which can populate their own data control objects. One of
these and probably the most important one in .NET is the DataSet.
In this case I'm using the DataAdapter's Fill() method to 'fill' the data into a DataSet
object. Notice that the DataSet is not prefixed by OleDb or Sql. This is because a DataSet is a generic object that is completely disconnected
from the parent datasource. Think of the DataSet as a container for multiple cursors DataSets can run and hold results from multiple queries
simultaneously. So when a new query is executed you need to tell the DataAdapter what name to give the table created into the DataSet.
Once a DataSet has been created
you can access its data directly either using programmatic access or by databinding to a data aware control. Many of the user
interface controls in .NET have intrinsic support for DataSets.
Here I'm using a DataGrid to bind the data and simply
display a simple list of the data in an HTML table through the DataGrid Server Control object (oCustList)
by using:
this.oCustList.DataSource =
this.oDS.Tables["CustomerList"];
DataSets are made up of Tables,
Rows and Columns (and a few other things like Relations and Constraints). Here
I'm binding to a table in the DataSet. Tables inside
of a DataSet have an automatic data view that
represents a layout that determines how the table renders into the DataGrid. The default iew is very
basic and displays all the fields in the table in a grid format with the field
names as headers. The result is very raw, but useful for quickly seeing the
data displayed (Figure 1). To customize the view you have to set properties on
the DataGrid either in the <asp:DataGrid> tag or by setting properties on the
object. I'm not going into the details
of the datagrid here but rather focus on the data
access issues.
You can also access the data directly via code. A DataSet contains a collection of Tables, which in turn
contains a collection of Rows. The Rows then contain the individual fields. The
following snippet demonstrates:
DataRow loRow =
this.oDS.Tables["CustomerList"].Rows[0]; // first data row
int lnRowCount =
this.oDS.Tables["CustomerList"].RowCount;
string lcCompany = loRow["company"].ToString();
decimal MaxOrdAmt = (decimal)
loRow["maxordamt"];
Note that you have to cast the data items to a specific type
as the actual fields are objects. You can use ToString() on strings, but
you'll need to use casts for most other datatypes.
Take 2: A little more generic
The code above is fine, but it gets repetitive in a hurry,
so rather than write it each time it's a good idea to isolate some of the data
access code into a separate business object layer. This is overly simplistic
for this article's purposes, but demonstrates the basics of what it takes to
simplify data access and separate the business logic from the ASP.NET page.
The following example creates a small ASP.NET application
that displays a list of customers and lets you browse through the list and view
and edit each of the customers. You can also add new customers. I'll
demonstrate querying, updating and finally adding a customer using a stored
procedure in this example all using the simple business object template.
To do this I use a very simplified business object called tasCustomer that's subclassed
from aBusObj, which is a very minimal helper business
object class that simplifies some of the queries and update operations.

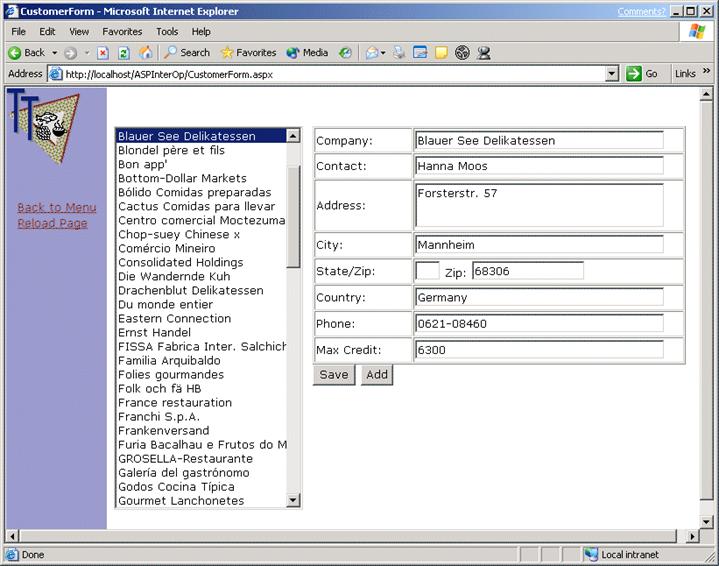

Figure 1
This customer form browses and allows editing of customers from the TasTrade sample application.
This Web Form performs two separate data tasks: Retrieval of
the list displayed and the update operations on the individual customers.
Since this is ASP.NET I'll use DataSets
for these operations and also take advantage of the fact that the form's viewstate can persist the list for
me without going back to the database. In essence the form loads the list of
customers only once, and then persists the list as
part of the form's viewstate that is passed back and
forth over the wire. This view state also includes settings of the list such as
the currently selected item(s). This works well for smallish lists like this
one, but I wouldn't recommend this same approach for long lists as you are
essentially trading bandwidth for server resources against a database
operation. If you don't use ViewState you have to
manually retrieve the data each time for the list, and then set the selected
item based on the form variable returned from the list (Request.Form("oCustomerList")).
Ok, let's see how we retrieve this data using the VFP OleDb driver. As I mentioned I'm using a simple business
object implementation to help with my work here. In the ASP.NET form (CustomerForm.aspx) the first thing I do is run an Execute
to return the list if the form is not in PostBack
mode. PostBack mode for an ASP.NET form means that
the form is not being loaded for the first time and returning values from the
form in other words the user has clicked a button. The first time through the
form will not be in PostBack mode and we'll have to
run the query. To do so I use in the form's Page_Load event method (Listing 2 from CustomerForm.aspx.cs).
private void Page_Load(object sender, System.EventArgs e)
{
// *** Clear the
Error Message always
this.lblErrorMessage.Text = "";
this.oCustomer =
new tasCustomer();
if
(!this.IsPostBack)
{
if
(this.LoadCustomerList()) {
// ***
Force first item to display in edit view
if
(this.oCustomerList.Rows > 0)
{
this.oCustomerList.SelectedIndex = 0;
this.ShowCustomer();
}
}
}
}
protected bool LoadCustomerList()
{
int lnCount =
this.oCustomer.Execute(
"select company,
cust_id from customer order by Company",
"customer");
if
(this.oCustomer.lError)
{
this.lblErrorMessage.Text = this.oCustomer.cErrormsg;
return false;
}
else
{
// *** Databind the DataTable
this.oCustomerList.DataSource =
this.oCustomer.oDS.Tables["customer"];
this.oCustomerList.DataTextField = "company";
this.oCustomerList.DataValueField = "cust_id";
this.oCustomerList.DataBind();
}
return true;
}
This code fires off in the Page_Load
of the ASP.NET page and then calls the LoadCustomerList() method to actually perform the data retrieval and binding
of data tied to the list. The Execute method on the business object handles running
the query. The business object provides several methods such as Open() and Execute() that remove some of the code that is
required in setting up a DataSet and returns the
actual DataSet as an object member oDS. oCustomer.oDS
holds the result and as you can see in the code above the "customer"
result table is then bound to the list box. Both a display field and a key
field are bound we'll use the key field later on to retrieve a specific
customer.
The key methods of the base business object are set up as
shown in Listing 3 (from tasCustomer.cs).
public class aBusObj
{
public string
cConnectString = "";
/// these
properties along with Open,Close,Load,Save really belong
/// into a data
wrapper or high level business object. For compactness'
/// sake I've
included them as part of the class here.
public
OleDbConnection oConn = null;
public
DataSet oDS = null;
public string
cErrormsg =
"";
public bool
lError = false;
protected virtual bool Open()
{
/// create if it
doesn't exist already
if (this.oConn ==
null)
{
try
{
this.oConn
= new OleDbConnection(this.cConnectString);
}
catch(Exception e)
{
this.SetError( e.Message );
return
false;
}
}
/// check if
connection is open - if not open it
if
(this.oConn.State != ConnectionState.Open)
{
try
{
oConn.Open();
}
catch(Exception e)
{
this.SetError( e.Message );
return
false;
}
}
/// make sure our
dataset object exists
if (oDS == null)
oDS = new
DataSet();
return true;
}
protected virtual bool Close()
{
if (oConn.State
== ConnectionState.Open)
try
{
oConn.Close();
}
catch(Exception e)
{
this.SetError( e.Message );
return
false;
}
return true;
}
public virtual int Execute(string lcSQL, string lcCursor)
{
if (!this.Open())
return 0;
OleDbDataAdapter
oDSAdapter = new OleDbDataAdapter();
oDSAdapter.SelectCommand = new OleDbCommand(lcSQL,oConn);
// *** remove the
table if it exists - fail and ignore
try
{
oDS.Tables.Remove(lcCursor);
}
catch(Exception
e) { } // Ignore the error
try
{
oDSAdapter.Fill(oDS,lcCursor);
}
catch(Exception
e)
{
this.SetError(e.Message);
return 0;
}
return
oDS.Tables[lcCursor].Rows.Count;
}
//
more methods here not included see source code
} // end of aBusObj
The Open() and Close() metods basically deal with setting up the connection and
making sure that the connection strings are valid. The Execute()
method then runs the specified query and creates a cursor in the business
object's DataSet object. If you'll recall a DataSet can contain more than a single table, so if you run
multiple queries they can all be stored in a single dataset. If you have
multiple business objects they can also potentially share the same DataSet object reference. Note that Execute tries to remove
the table name before creating the result so that if a cursor by the same name
exists already it's overwritten otherwise an exception would occur.
With this code in place running a query then becomes as easy
as calling the Execute method with a SQL statement. In this case the SQL
statement retrieves the customer list, and then assigns the result table to the
listbox of the TasTrade
customer form.
Note that all the methods in the aBusObj
class are virtual, which means they can be overridden by the implementation
classes. For example, the Open method is overridden in the tasCustomer
class to set properties on the VFP OleDb session. In
order to do this you have to actually run a command against the VFP data source
using language commands such as SET EXCLUSIVE OFF, SET DELETED ON etc (Listing 3.1
from tasCustomer.cs).
protected override bool Open()
{
if (base.Open()) // call the Parent class' Open() (no laughing
please! <g>)
{
try
{
OleDbCommand oCommand = new OleDbCommand();
oCommand.Connection = this.oConn;
oCommand.CommandText = "SET NULL OFF\r\nSET DELETED ON";
oCommand.ExecuteNonQuery();
}
catch(Exception ex)
{
this.SetError(ex.Message);
return
false;
}
return true;
}
return false;
}
Databinding record data fields
Once the list has been loaded the next step is to retrieve
an individual customer for display. To accomplish this task I use ASP.NET databinding, which is somewhat limited if you compare it to
databinding in desktop applications. Keep in mind
ASP.NET databinding is really a one way affair meant
only to bind data for display to read data back you have to explicitly
extract the data from the controls that it's held in.
To do the databinding I use a
combination of the Server control expressions (<%# %> syntax) and code in
the ShowCustomer method. ShowCustomer() get fired from
the form's SelectedIndex_Changed event method
(Listing 4 from CustomerForm.aspx.cs).
private void oCustomerList_SelectedIndexChanged(object
sender,EventArgs e)
{
this.ShowCustomer();
}
protected string GetIdFromList()
{
if
(this.oCustomerList.SelectedItem == null)
{
this.lblErrorMessage.Text = oCustomer.cErrormsg;
return null;
}
return
this.oCustomerList.SelectedItem.Value;
}
private bool ShowCustomer()
{
// *** Figure out
which item is selected
string lcID =
this.GetIdFromList();
// *** Load that
customer
if
(!this.oCustomer.LoadCustomer(lcID)) {
this.lblErrorMessage.Text =
oCustomer.cErrormsg;
return false;
}
// *** Force
databinding to occur to the ASP Server Controls
this.dtrCurrent =
this.oCustomer.oDS.Tables["Customer"].Rows[0];
this.DataBind();
return true;
}
The business object LoadCustomer
method is fired which does little more than run an Execute and retrieve the
single record using the existing business object (Listing 5 from tasCustomer.cs).
public bool LoadCustomer(string lcID)
{
int lnCount =
this.Execute("select * from customer where cust_id='" +
lcID +
"'","Customer");
if (this.lError)
{
return false;
}
return true;
}
This single record table row is then assigned to the dtrCurrent property of the form, which in turn is databound to the ASP.NET server controls.
DataBinding in .NET to textbox
controls is one way which means that data is bound for display only. This makes
sense given the stateless nature of Web requests and display and update
happening usually in the same request.
Databinding to text box controls
is accomplished by setting the Value tag of the ASP.NET control in the ASP.NET
display page. For example the Company field is bound as follows in CustomerForm.aspx:
<asp:TextBox id="txtCompany"
runat="server"
Text='<%#
this.dtrCurrent["company"] %>'>
</asp:TextBox>
Note that databinding is not
automatic it doesn't occur until you explicitly call the DataBind
method of the individual control or the Page object. Above the ShowCustomer()
method calls the DataBind() method of the page (this.DataBind())to force all the controls to bind. This is
good too, because of the way that the form works. First the list loads, and no
items are available yet. An item is loaded only after the list is loaded and
the first item can be selected.
This is important to understand as you can't bind to a datasource that is not loaded yet or else the page will
fail. ASP.NET gives you full control on when the actual data is bound while
allowing you to set the binding expression any time. Hey, that's a request I've
had for VFP forms forever and it actually works here.
Updating the data
As I mentioned above ASP.NET data is not really databinding in the traditional sense because it's only one
way. So in order to update data you have to read the values explicitly from the
controls and back into the underlying data source. Here I read the data back
into the DataRow object after pressing the save button
(Listing 6 from CustomerForm.aspx.cs).
private void btnSave_Click(object sender, System.EventArgs
e)
{
string lcID =
this.GetIdFromList();
if ( !this.oCustomer.LoadCustomer(lcID) )
{
this.lblErrorMessage.Text
= oCustomer.cErrormsg;
return;
}
/// Update the
row contents
DataRow oRow =
this.oCustomer.oDS.Tables["Customer"].Rows[0];
oRow["company"] = this.txtCompany.Text;
oRow["address"] = this.txtAddress.Text;
oRow["city"]
= this.txtCity.Text;
oRow["MaxOrdAmt"]
= Convert.ToDecimal(this.txtCredit.Text);
//
more fields
omitted here
/// Call the bus
object to save the data to disk
this.oCustomer.SaveCustomer();
}
The code then defers to the business object to save the data
back to the VFP data source.
Up to now our VFP datasource has
had no issues in interaction with ADO.NET. Unfortunately for any kind of data
updates the VFP OleDb provider has a few missing
features that make an otherwise simple process a lot more code intensive than
it is say with a SQL Server datasource.
ADO.NET supports the concept of database schemas being
retrieved along with the data when a query is run. So, normally when you run a
query against a datasource the Primary key info is
retrieved. This makes it possible to automatically update a datasource
because the DataAdapter can use the schema
information to decide how to update the DataSource
based on the key info.
Unfortunately the VFP OleDb
provider in its current incarnation does not support this information and
you're required to manually create INSERT and UPDATE statements. The following
work with SQL Server, but not with
VFP. With SQL Server you can do the following:
OleDbDataAdapter oDSAdapter = new
OleDbDataAdapter("select * from customer",
this.oConn);
/// This builds the Update/InsertCommands for the data
adapter
OleDbCommandBuilder oCmdBuilder = new
OleDbCommandBuilder(oDSAdapter);
lnRows = oDSAdapter.Update(this.oDS,"Customer");
The OleDbCommandBuilder is an
object that can automatically build SQL INSERT/UPDATE/DELETE commands if the datasource supports schema information. But this doesn't
work with the VFP OleDb driver as this information is
not provided.
To work around this you have to manually assign the
INSERT/UPDATE/DELETE statements. The following example demonstrates the UPDATE
command (limited to a couple of fields).
string lcSQL =
"UPDATE
customer SET company='" + oRow["company"].ToString() + "' " +
"where
cust_id='" +oRow["cust_id"]+ "'";
oDSAdapter.UpdateCommand = new
OleDbCommand(lcSQL,this.oConn);
Once that's done the oDSAdapter.Update() method call succeeds.
Of course if you have to go through all the trouble of
updating the UPDATE command manually you might as well just execute the UPDATE
command manually with less code without requiring the DataSet
to be directly involved at all:
string lcSQL =
"UPDATE
customer SET company='" + oRow["company"].ToString() + "' " +
"where
cust_id='" +oRow["cust_id"]+ "'";
OleDbCommand oCommand = new
OleDbCommand(lcSQL,this.oConn);
oCommand.ExecuteNonQuery();
Schema retrieval functionality is scheduled to be provided
in the next version of the VFP OleDb provider, but
currently we're stuck with having to manually write our own UPDATE/INSERT
statements. Putting all of this together the SaveCustomer
method looks like Listing 6.1 (tasCustomer.cs).
public bool SaveCustomer()
// tasCustomer object
{
if (!this.Open())
{
return false;
}
OleDbDataAdapter
oDSAdapter = new
OleDbDataAdapter("select * from customer",this.oConn);
// This builds
the Update/InsertCommands for the data adapter
// THIS DOES NOT WORK WITH VFP DATA!
// OleDbCommandBuilder
oCmdBuilder = new OleDbCommandBuilder(oDSAdapter);
DataRow oRow =
this.oDS.Tables["Customer"].Rows[0];
string lcSQL =
"UPDATE
customer " +
"SET
company='" + oRow["company"].ToString() + "'," +
"contact='" + oRow["contact"].ToString() +
"'," +
"address='" + oRow["address"].ToString() +
"'," +
"city='" + oRow["city"].ToString() + "', "
+
"region='" +
oRow["region"].ToString() + "', " +
"postalcode='" +
oRow["postalcode"].ToString() + "'," +
"country='" + oRow["country"].ToString() +
"'," +
"maxordamt=" + oRow["maxordamt"].ToString() + "
" +
"where
cust_id='" +oRow["cust_id"]+ "'";
oDSAdapter.UpdateCommand =
new
OleDbCommand(lcSQL,this.oConn);
int lnRows = 0;
try
{
/// Take the
changes in the dataset and sync to the database
lnRows =
oDSAdapter.Update(this.oDS,"Customer");
// *** Or you can just directly execute the
Command object
// oDSAdapter.UpdateCommand.ExecuteNonQuery();
}
catch(Exception
e)
{
this.cErrormsg
= e.Message;
return false;
}
return true;
}
Using Stored Procedures
As a last issue here I want to demonstrate calling a Stored
Procedure in a VFP DBC to perform the Insert operation for a new customer. Again,
standard syntax that's supported with SQL Server doesn't work with the VFP OleDb provider at this time, so you need to use explicit
syntax to call the stored procedure.
I kept this method to only a few field values to keep these
code snippets short enough for display you'd probably want to add all the
remaining fields. The VFP Stored Procedure looks like this added to the TasTrade sample data (testdata.dbc):
FUNCTION InsertCustomer
LPARAMETERS lcCompany, lcContact, lnMaxOrdAmt
lcCustId = LEFT( UPPER(lcCompany), 5)
INSERT INTO Customer (CUST_ID,Company, Contact, MaxOrdAmt)
VALUES
(lcCustId,lcCompany,lcContact,lnMaxOrdAmt)
RETURN lcCustId
When you click on the Add button of the ASP.NET form the
currently active data is stored to the database by calling the AddCustomer method of the business object.
private void cmdAdd_Click(object sender, System.EventArgs
e)
{
if
(!this.oCustomer.AddCustomer(this.txtCompany.Text,this.txtContact.Text,
Convert.ToDecimal( this.txtCredit.Text)) )
{
this.lblErrorMessage.Text = this.oCustomer.cErrormsg;
}
}
AddCustomer in the business object
then calls the stored procedure explicitly (Listing 7 tasCustomer.cs).
public bool AddCustomer(string lcCompany, string
lcContact, decimal lnMaxOrdAmt)
{
if (!this.Open())
{
return false;
}
OleDbCommand oCommand = new OleDbCommand();
oCommand.Connection = this.oConn;
oCommand.CommandText = "InsertCustomer('" +
lcCompany + "','" +
lcContact + "',lnMaxOrdAmt.ToString())";
try
{
oCommand.ExecuteNonQuery();
}
catch(Exception ex)
{
this.SetError(ex.Message);
return false;
}
return true;
}
I ran into some problems here with this code that worked
fine in VFP, but didn't at first with .NET due to the NULL requirements. The OleDb provider string doesn't support provider options so
the only way to set these particular settings is to actually run a command
against the connection. To do this I overrode the Open()
method of the aBusObj class to do the following (tasCustomer.cs):
protected override bool Open()
{
if (base.Open())
{
OleDbCommand
oCommand = new OleDbCommand();
oCommand.Connection = this.oConn;
oCommand.CommandText
= "SET NULL OFF\r\nSET DELETED ON";
oCommand.ExecuteNonQuery();
return true;
}
return false;
}
Interestingly enough I also ran into a major bug in the
driver before I added the code above. The INSERT from the stored procedure
would fail with an error: Field TITLE
cannot contain Nulls. The Command's ExecuteNonQuery()
would throw an exception indicating that the stored procedure call failed, yet
when I checked the table I ended up with a new record anyway! This issue
appears to be specific to this NULL error as other errors like violating the
Primary key rule did not cause this behavior. Microsoft is aware of this issue
and looking into it.
OleDb Summary
The VFP OleDb provider makes it
possible to access Visual FoxPro data through the .NET environment but in its
current implementation it doesn't provide all the functionality that ADO.NET offers.
This doesn't exclude VFP from .NET integration, but it does make it more code
intensive to use VFP data than say SQL Server or even Access (Jet) data. Plan on writing SQL statements by hand as opposed to using ADO.NET's auto-update features at least in this release of
the driver. Microsoft has indicated that they are planning to support
more of the .NET specific features in future versions of the driver they are
aware of some of the limitations and are working to address them at this time
so we can look forward to fuller .NET support.
COM Interoperability
For many years the main call from Microsoft has been to
build component based applications based on the Component Object Model (COM) by
creating components in your language of choice and then exposing those
components or classes as COM objects to the operating system.
.NET bucks this trend by using a whole new mechanism of
interoperability via the Common Language Runtime which provides intermediary
byte code that is compatible with multiple languages that can output .NET
capable byte code that is compiled into executable binaries on the fly by the
runtime. What this means is that the days for binary incompatibility are gone. As are some of the issues that have plagued the COM infrastructure
namely the issue of versioning and DLL Hell.
However, COM remains very important even with .NET both as a
backwards compatibility feature as well as a mechanism to provide interop with the runtime as a whole. For example, many of
the scalability features of the Windows operating system are still implemented using
the COM+ system. .NET itself also uses COM+ underneath to implement many of the
Enterprise features like
distributed transaction management, context and process management and many
security features. What's exciting here is though that the intricacies of COM+
are mostly hidden behind more user friendly .NET classes that expose the
functionality through class interfaces or attribute based descriptors.
However, COM usage in .NET for the developer is played way
down and the focus in .NET is on building .NET classes that perform
functionality rather than calling out to 'legacy' COM components to perform
business logic or other tasks. COM interop is
provided more as a backward compatibility feature than a 'moving forward'
feature. But because there's a large, large investment in COM by many
organizations, COM support in .NET is fairly strong.
The good news is that you can access most COM components in
.NET without any fuss. It isn't quite as easy as it was say in Visual
FoxPro/Visual Basic with late binding and CreateObject(),
but with a little bit more work COM interop is easily
accomplished. The not so good news though is that there's a performance penalty
for using COM objects in .NET resulting in reduced performance when compared to
previous COM based technologies. It's clear that the focus of .NET is not
necessarily to provide the best hosting environment to COM components but
rather to provide a mechanism to allow applications to co-exist until they can
be rebuilt with .NET.
COM interop in .NET is a two way
affair you can call COM components from .NET and you can call .NET components
from classic COM capable applications. Let's look at each of the approaches,
how they work and what they offer to the developer.
Calling COM components from .NET
This mechanism is likely to be the most commonly used
functionality of COM interop as it allows you to
integrate existing functionality into new applications that are being built or
migrated to the .NET platform.

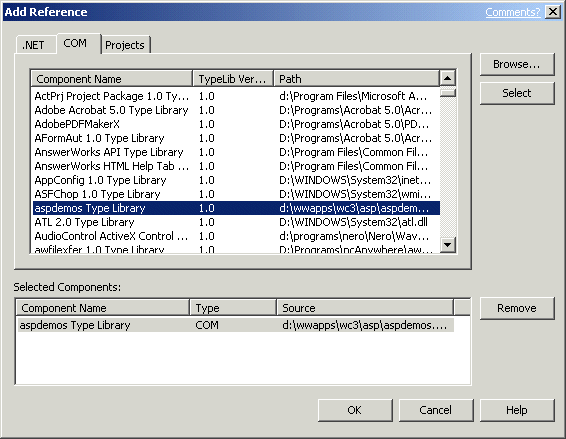

This process uses internal Interop
classes in the .NET framework to link and bind to COM components. The standard
process to accomplish this is to import the COM component which creates a
compiled wrapper .NET class that implements the COM objects interfaces as a
.NET class.
Because .NET is a type safe environment this .NET interface
is necessary to allow access to the class methods and properties. This
satisfies the compiler for type safety through mapping all the COM
properties/parameters/return types to the appropriate .NET types. This process is similar to early binding in
traditional COM client, but yet it is somewhat different. Behind the scenes the
wrapper class makes the appropriate Interop class
calls to call the COM component and then maps the parameters and return values
to the wrapper class.
Those Interop classes can also be
accessed directly via code to provide the equivalent of Late Binding,
but be advised that this can take a lot of code to do. It's similar to using C++ and the IDispatch COM interface to query information about a class and
then calling the method signature with generic parameters that need to be
translated and typecast into the proper typesafe
values that the compiler can deal with. This code can be messy and I wouldn't
recommend it for anything but objects that aren't properly described inside of
their respective type libraries (more on this later).

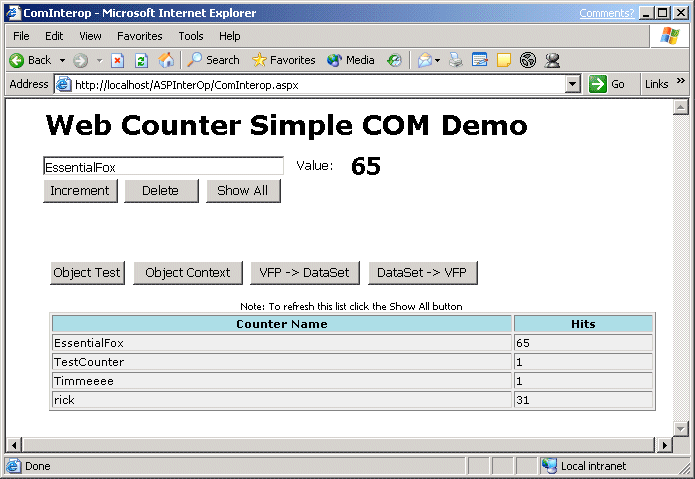

To demonstrate let's create a simple object that I've used
in the past for ASP COM interop and walk through
creating the object in VFP and then making it available in .NET to an ASP.NET
page/application. The class is very simple and doesn't do anything fancy the
purpose here is to demonstrate the operation of the interop
mechanism not to show what you can do with it. I'll leave that for some future
article <g>.
I'll create a COM object here and show a few methods at a
time. To review the basics of creating a COM object, I'll start with a simple
object that serves as a Counter manager that stores and increases named counter
values. The first step is to create the object as a COM capable class (listing
9 asptools.prg).
*************************************************************
DEFINE CLASS ASPTools
AS
Custom OLEPUBLIC
*************************************************************
*** Custom Properties
cDataPath=LOGFILEPATH
cAppStartPath = ""
oScriptingContext = .NULL.
nCounter = 0
lError = .f.
cErrorMsg = ""
************************************************************************
* aspTools :: Init
*********************************
*** Function: Set
the server's environment. IMPORTANT!
************************************************************************
FUNCTION INIT
*** Make all required environment settings here
*** KEEP IT SIMPLE: Remember your object is created
***
on EVERY ASP page hit!
SET RESOURCE OFF
&& Best to compile into a CONFIG.FPW
SET EXCLUSIVE OFF
SET REPROCESS TO 2 SECONDS
SET CPDIALOG OFF
SET DELETED ON
SET EXACT OFF
SET SAFETY OFF
*** Add this mainly so that the project will include
*** this stuff here
SET PROCEDURE TO wwUtils ADDITIVE
SET PROCEDURE TO wwAPI ADDITIVE
*** IMPORTANT: Figure out your DLL startup path
THIS.cAppStartPath =
ADDBS(JUSTPATH(Application.ServerName))
*** If you access VFP data you probably will have to
*** use this path plus a relative path to get to it!
*** You can SET PATH here, or else always access data
*** with the explicit path
SET PATH TO (THIS.cAppStartpath)
DO PATH WITH THIS.cAppStartPath + "DATA"
ENDFUNC
************************************************************************
* aspTools :: IncCounter
*********************************
*** Function:
Increments a counter in the registry.
*** Pass:
lcCounter - Name of counter to increase
***
lnValue - (optional) Set the value of the counter
*** -1 delete the
counter.
*** Return:
Increased Counter value - -1
on failure
************************************************************************
FUNCTION IncCounter(lcCounter as String, lnSetValue as
Integer) as Integer
LOCAL lnValue
lnSetValue=IIF(EMPTY(lnSetValue),0,lnSetValue)
oMTS = CreateObject("MTxAS.AppServer.1")
THIS.oScriptingContext = oMTS.GetObjectContext()
this.oScriptingContext.Item("Response").Write("Inccounter
from VFP<p>")
IF !USED("WebCounters")
IF
!FILE(THIS.cAppStartPath + "WebCounters.dbf")
SELE 0
CREATE table
(THIS.cAppStartPath + "WEBCOUNTERS") ;
( NAME
C (20),;
COUNTER I )
USE
ENDIF
USE
(THIS.cAppStartPath + "WEBCOUNTERS") IN 0 ALIAS WebCounters
ENDIF
SELE WebCounters
LOCATE FOR UPPER(name) = UPPER(lcCounter)
IF !FOUND()
INSERT INTO
WEBCounters VALUES (lcCounter,1)
lnValue = 1
ELSE
IF RLOCK()
IF lnSetValue
> 0
REPLACE
Counter with lnSetValue
ELSE
IF
lnSetValue < 0
REPLACE
Counter with 0
DELETE
ELSE
REPLACE Counter with Counter + 1
ENDIF
ENDIF
lnValue =
Counter
UNLOCK
ELSE
lnValue = 0
ENDIF
ENDIF
*** For testing
This.ncounter = lnValue
RETURN lnValue
ENDFUNC
ENDDEFINE
Remember that's it's real easy to create a COM object in VFP
simply by setting the OLEPUBLIC attribute on the DEFINE CLASS statement of a
PRG based class or by setting the OLE Public checkbox on the class property
settings of a VCX based class. However, it's equally important to set up your
COM object properly to run in the hosted environment, especially if that hosted
environment happens to be a service such as Internet Information Server (IIS).
The INIT method of the object sets the environment and saves some state
information that preserves the startup location of the application and set's
the path to it so we can find the data located there.
To create this class as a COM object, add this class to a
project (I named mine ASPDemos) and COMPILE it into a
Multi-Threaded COM Server or use BUILD MTDLL AspDemos
from AspDemos.
Once this is done you can now use the object from VFP with:
oDemo = CREATEOBJECT("AspDemos.AspTools")
? o.IncCounter("CodeDemo") && 1
? o.IncCounter("CodeDemo") && 2
? o.IncCounter("EssentialFoxDemo") && 1
? o.IncCounter("CodeDemo") && 3
For most of you this is nothing new. But note that if you
are building COM objects for use with .NET there is at least one major
difference: You MUST use VFP 7.0 and it's typing features to describe your
parameter and return value types, or else your methods will not be accessible
properly.
Importing the COM object into .NET
Ok, once your object is built you need to import it into
.NET. The easiest way to do this is to use Visual Studio.NET and the References
selection in the Project manager. Right click on the References tree item and
Add Reference. Then pick the COM tab and select your object from the list, or
if it's not registered yet, browse to it on disk (Figure 2).
Figure 2 Importing a COM object into .NET is as
easy as selecting the object from the installed COM components or physically
selecting a typelibrary/dll from disk. This process
creates a .NET wrapper class for your COM object that is treated as any other
.NET object.
Once the object has been added to your project you can
access it pretty much like any other .NET object. For ASP.NET pages you'll have
to do a couple of additional things to get it to run properly. Since I'm using
VS.NET the actual ASP.NET page contains nothing more than the page header, while
all the logic goes into a codebehind class. The main
thing on the ASPX page header is the PAGE directive:
<%@ Page ASPCOMPAT=true language="c#"
Codebehind="ComInterop.aspx.cs" AutoEventWireup="false"
Inherits="ASPInterOp.ComInterop" %>
This tells the CLR that the actual code that runs on this
page is stored in COMInterop.aspx.cs. This is where
I'll put the code to demonstrate the use of the COM object I created above.
There's another very important directive in the PAGE tag
above! The ASPCOMPAT=true attribute tells the ASP.NET page that it is hosting
COM components that don't conform to the ASP.NET threading model. Visual FoxPro
(and Visual Basic 6) COM objects are Single Threaded Apartment (STA) objects,
while .NET natively runs ASP.NET requests on MultiThreaded
Appartment (MTA) threads. This requires the .NET
framework to make some changes into how requests are handled by essentially
switching the request into STA compatible mode. I'll talk more about this a
little later in relation to how this affects performance.
ASPCOMPAT also provides compatibility to classic the ASP COM
object environment by providing the appropriate Context objects that were
supported to retrieve the ASP intrinsic objects before. In particular the ObjectContext object provider which uses the COM+ IApplicationContext object interface is provided to COM
objects which would otherwise not be available. I'll come back to this in a bit
as well.
The code behind page then contains all the logic of the page
with the ASPX page only containing the display elements. I want to keep things
simple so I created a simple form that lets you increment counters, delete them
and show them all. The final running form is shown in Figure 3.
Figure 3
The COM Counter sample demonstrates using a basic COM object in a Web form.
The actual page is made up of a textbox (txtCounterName),
a label (lblCounter), a set of operational buttons (btnIncrement, btnDelete, btnShowAll) and an empty label control that is filled from
the COM object in this case with an HTML string that shows the table you see
in Figure 3. There's also a label between the table and the buttons called lblErrorMsg that is used for status information. For
example, when you delete a counter this label is updated with a message that
says that the counter was deleted.
Let's start with how the basic incrementation
mechanism works. Here's the Page Load and Increment button click code (Listing
10 ComInterop.aspx.cs).
...
using aspdemos; //
COM object wrapper
namespace ASPInterOp
{
//
control
declarations left out
public class
ComInterop : System.Web.UI.Page
{
private void
Page_Load(object sender, System.EventArgs e)
{
if
(!this.IsPostBack)
{
this.btnIncrement_Click(this,e);
}
}
private void
btnIncrement_Click(object sender, System.EventArgs e)
{
ASPToolsClass oVFP = new ASPToolsClass();
this.lblCounter.Text =
oVFP.IncCounter(this.txtCounterName.Text,0).ToString();
}
}
Ok, let's look at what happens here. First make sure the aspdemos namespace which represents the imported COM
object, is added to your class so that you can access the class. With the
namespace and reference added our VFP class behaves just like any other .NET
class including full access to Intellisense (Figure 4).
Figure4 Once imported your COM object looks
like any other .NET object with full access to Intellisense.
It's important that you define your methods with proper Type
information using VFP 7.0's parameter typing.
FUNCTION IncCounter(lcCounter as String, lnSetValue as
Integer) as Integer
If you don't provide the type information, the method will
not import properly and show up without parameters and return values and will
fail at runtime when called. (Note: as of .NET Framework SP1 this has been
fixed methods with variants will import with object parameters, which still are a pain to use so make sure you use
typed parameters/returns whenever possible (ie. all
the time!!!)).
Properties names are translated to upper case so nCounter becomes NCOUNTER. Remember C# is case-sensitive so
this makes a big difference. Better yet, always use Intellisense
to provide you with the proper property names.
Note that all properties are returned as type Object unless
you specifically type them with VFP's _ComAttrib functionality part of the class definition. Type
object is similar but not quite the same as a Variant in COM. Object types can
contain different sub types (such as strings, ints
etc), but they are cannot directly be accessed by their sub-type. In order to
use the variable safely in C# you have to explicitly cast it in many cases:
int
lnCounter = (int) oVFP.NCOUNTER + 10;
this.txtCounterProperty.Text
= lnCounter.ToString();
If you use the object variable multiple times it's probably
more efficient to store it into a properly typed variable first, then use it as
you intend to. It's both easier to work with and faster in execution.
Changing Code in your COM object
When it comes time to make a change to the COM object,
things are very similar to the way it was with classic ASP in order to
compile the COM object you need to restart the Web Service or at least the Web
application that hosts the COM component.
The easiest way to do this for me is to run the IISRESTART
utility. And for this purpose I use an Intellisense
script (tied to the IIS key sequence)
that simply does:
RUN /n4 IISRESET
IISRESET is a IIS 5.0 and later
utility that has a number of options for restarting the Web server. It can
restart all the services or with the proper options any of the specific
services. By the way, it can also be used to reboot a machine reliably. The nice
thing about running IISRESET from Fox is that it runs in a separate window that
starts and finishes when it's done so there's no more user interaction
required.
While the reset is working let's add another method to our
server to delete a counter (Listing 11 - asptools.prg).
Function DeleteCounter(lcCounterName as String) as Boolean
IF EMPTY(lcCounterName)
RETURN .F.
ENDIF
DELETE FROM WebCounters where Name = lcCountername
RETURN .T.
Then rebuild your server with BUILD MTDLL AspDemos from ASPDemos. To hook
up this method I'll edit the visual ASPX page add the btnDelete
button and add the following event code to the click event:
private void btnDelete_Click(object sender,
System.EventArgs e)
{
ASPToolsClass
oVFP = new ASPToolsClass();
oVFP.DeleteCounter(this.txtCounterName.Text);
this.lblErrorMsg.Text = "Counter " + txtCounterName.Text +
" deleted...";
this.lblCounter.Text
= "";
}
Before you add this code you might want to quickly recompile
the project (Ctrl-Shift-B) to force the AspDemos type
library code change to reflect in the .NET class and in the Intellisense
list. Once you recompile the DeleteCounter() method is available, otherwise it is not. This means that
VS.NET rebuilds your COM wrapper every time you make a change to it, which is
convenient. But realize that a compile is required to make this happen
changing the class and not recompiling in .NET
will likely result in a runtime error or COM version conflict (depending
on if and how the COM interface has changed).
This is different from classic ASP the COM object in .NET
is early bound which means it's bound at compile time through the wrapper class.
Any changes to the COM object require a recompile, so making a change to the
COM object always require two steps:
- Change
and recompile the VFP COM object
- Recompile
the .NET COM client application
Types of data to return
I think you will find that if you want to use ASP.NET
efficiently, you probably want to use COM objects as business objects as
opposed to an output generator. The two examples I've shown so far are - albeit
very simple business object methods that return business data directly back to
your application.
You may also want to return display output back to the ASP
page. For example, you may run a query and based on this query generate HTML in
your VFP code. While I don't think this is the best of ideas for ASP.NET Web
Form applications, you can do it very easily as the following code demonstrates.
Start by creating another method on your COM object that
returns in this case the list of counters (Listing 13 asptools.prg):
FUNCTION ShowCounters() as String
IF !USED("WebCounters")
IF
!FILE(THIS.cAppStartPath + "WebCounters.dbf")
SELE 0
CREATE
table (THIS.cAppStartPath + "WEBCOUNTERS") ;
( NAME
C (20),;
VALUE
I )
USE
ENDIF
USE
(THIS.cAppStartPath + "WEBCOUNTERS") IN 0 ALIAS WebCounters
ENDIF
SELECT name as Counter_Name, value as hits, ;
[<a
href="ShowCounters.asp?Action=Delete&ID=]+name+[">Delete</a>]
as Action ;
FROM WebCounters
;
order by 1 INTO CURSOR
TQuery
*** Render the cursor as an HTML table
RETURN THIS.ShowCursor()
This method runs a query and then calls a method in the
sample called ShowCursor() which generically generates an HTML table from the data.
This HTML string is then returned back to the client.
In the .NET form add a blank label
control and call it lblCounterList. We then assign
the control the HTML string that is returned from the ShowCounters() call to the
COM object.
private void btnShowAll_Click(object sender,
System.EventArgs e)
{
ASPToolsClass
oVFP = new ASPToolsClass();
this.lblCounterList.Text =
"<small><center>Note: To refresh this list click the
" +
"Show All
button</center></small>" +
oVFP.ShowCounters();
}
Now, if you run this form you'll notice something
interesting if you're not familiar with Web forms. After you click Show All
once the list pops up and even if you click one of the other buttons, the list
stays on the form. But also notice that the value of the counters don't change
in the list even though you may have clicked Increment a few times and the
actual counter values has been upped.
What's happening here is something called Viewstate. Viewstate holds the
content of server variables including labels in an encoded, hidden form
variable that is posted back to the server. So the HTML string is compressed
and sent back to the server decoded there and then redisplayed. What this means
is that the list that you see if you don't click on the Show All button is a
static string rather than a live result retrieved from the COM object. It gets
re-posted from its previous form state. As such it gets to be out of sync in
this scenario.
There are two ways to solve this issue. You can either check
to see if the list is active and if so always reload it from the COM object.
Or, probably more efficiently, turn off the Viewstate
for the label control and show the list only when the user explicitly asks to
see it by clicking on the Show All button which is the approach I took here.
This is a good example of how Viewstate
affects your ASP.NET Web forms and data displayed in it you will find you may
have to write a fair amount of code to properly handle data especially if
you're dealing with data intensive controls/fields on a form and deciding on
whether to support Viewstate on these controls for
ease of use or ending up sending a ton of data over the wire to persist the
state. A trade off you have to work out for your
specific scenario.
Returning non COM objects
One important area is that of returning objects back through
COM interop and .NET. Specifically if you want to
return objects that aren't defined in the type library of the COM object you
are publishing. I do this quite frequently with code shown in Figure 15 (asptools.prg).
FUNCTION GetCustObject(lcCustId as String) as Object
IF !USED("TT_Cust")
USE
(THIS.cAppStartPath +"wwdemo\TT_Cust") IN 0
ENDIF
SELE TT_Cust
LOCATE FOR CustNo=PADL(lcCustId,8)
IF FOUND()
SCATTER NAME
loCustomer MEMO
RETURN loCustomer
ENDIF
SCATTER NAME loCustomer MEMO BLANK
RETURN loCustomer
In classic ASP or a COM capable client you can simply do
this:
Set oVFP = Server.CreateObject("aspdemos.asptools")
Set loCustomer = oVFP.GetCustObject("4")
Response.Write(loCustomer.COMPANY)
But this doesn't work in ASP.NET because the SCATTER NAME
object is not defined in the Type library that was imported by VS.NET to create
the class wrapper. .NET has no idea how to reference the returned object
directly.
So how do we do this? The pointer returned is an IDispatch object pointer and we have to access this object
indirectly now because .NET can't do the automatic mapping as VBScipt/Jscript ASP was able to do. Unfortunately, this is a
bit more work in .NET (Figure 16 ComInterop.aspx.cs).
private void btnObject_Click(object sender,
System.EventArgs e)
{
ASPToolsClass
oVFP = new ASPToolsClass();
object loCustomer
= oVFP.GetCustObject("4");
// string
lcCompany = loCustomer.COMPANY; // no
good!
object temp = loCustomer.GetType().InvokeMember(
"COMPANY",BindingFlags.GetProperty,null,loCustomer,null);
string lcCompany
= (string) temp;
this.lblErrorMsg.Text = lcCompany;
}
Messy, huh? Unfortunately this is
the only way to retrieve values that aren't explicitly available in the type
library. As you might expect this mechanism is fairly slow as well, as .NET must
look up the type info on the object before retrieving the data. To do so it uses
Reflection, which is .NET's
extensive type discovery and parsing mechanism. In order to use the
above code make sure you add the
using System.Reflection;
namespace to your source code.
You can simplify the above code a little by using a wrapper
method like this (Listing 17 ComInterop.aspx.cs).
private object
GetProperty(object loObject,string lcProperty)
{
return loObject.GetType().InvokeMember(
lcProperty,BindingFlags.GetProperty,null,loObject,null);
}
which reduces the application code
to:
this.lblErrorMsg.Text = (string) this.GetProperty(loCustomer,"COMPANY");
which is considerably more user
friendly.
Calling methods dynamically works the same way. The AspTools class includes a method called ReturnObject
which can return any object available in the project, whether it's defined as a
COM object or not. Let's say you return a full VFP object that isn't a COM
object. Listing 18 shows a simulated business object class that simply loads a
customer object into an oData member using a Load
method (Listing 18 asptools.prg).
DEFINE CLASS aspCustomer as Session
oData = null
cAppStartPath = ""
FUNCTION INIT
*** We need a startup path to find our data
THIS.cAppStartPath =
ADDBS(JUSTPATH(Application.ServerName))
SET PATH TO (THIS.cAppStartpath)
DO PATH WITH THIS.cAppStartPath
ENDFUNC
*** Load a customer by ID into the oData member
FUNCTION Load(lcCustId as String) as Boolean
IF !USED("TT_Cust")
USE
(THIS.cAppStartPath + DATAPATH + "TT_Cust") IN 0
ENDIF
SELE TT_Cust
LOCATE FOR CustNo=PADL(lcCustId,8)
IF FOUND()
SCATTER NAME
THIS.oData MEMO
RETURN .T.
ENDIF
SCATTER NAME THIS.oData MEMO BLANK
RETURN .F.
ENDFUNC
* aspCustomer :: Load
ENDDEFINE
We can now use our COM object to return a reference to this
class with the ReturnObject method of the ASPTools class:
FUNCTION ReturnObject(lcName as String) as Object
oObject = CREATEOBJECT(lcName)
IF VARTYPE(oObject) # "O"
RETURN .NULL.
ENDIF
RETURN oObject
If you now compile the project you can do the following from
the VFP command window:
oDear = CREATEOBJECT("aspdemos.asptools")
oCust = oDear.ReturnObject("aspCustomer")
? oCust.Load("4")
? oCust.oData.Company
? oCust.oData.Careof
We're dynamically creating a VFP object returning it over
COM and then call a method on this object, which in turn sets the oData member with the actual values for the retrieved
customer.
With .NET we have to use the Reflection interface to perform
all these tasks. Let's start by looking at how to make the method call:
ASPToolsClass oVFP = new ASPToolsClass();
object loCustomer =
oVFP.ReturnObject("aspCustomer");
string lcCompany =
loCustomer.GetType().InvokeMember("Load",
BindingFlags.InvokeMethod,null,loCustomer,new
object[] {"4"}).ToString();
this.lblErrorMsg.Text = lcCompany;
The method call returns a value or true or false which is
stored into the label. As with the property retrieval the Reflection
functionality is used to dynamically access the COM object and call the method.
This time we need to specify a parameter list in an object array which is the
last parameter shown here. The single parameter here is a string of
"4". As with the property retrieval this code is messy and hard to
remember so I created a wrapper method called CallMethod:
private object CallMethod(params object[] loParams)
{
object[]
loActualParams = null;
object loObject =
loParams[0];
int lnSize =
loParams.Length - 2;
if (lnSize >
0)
{
loActualParams
= new object[lnSize];
for (int x=2;
x < loParams.Length; x++)
{
loActualParams[x-2] = loParams[x];
}
}
return
loObject.GetType().InvokeMember(loParams[1].ToString(),
BindingFlags.InvokeMethod,null,loObject,loActualParams);
}
This code relies on C#'s ability
to pass variable parameters to a method using a parameter collection that can
be parsed at runtime. It takes the object name and method call to be used for
the InvokeMember() call and then builds a new object array with all
remaining arguments which are the actual parameters to the method call.
Using those two helper methods lets look at how we can
handle the Fox code from above in .NET (Listing 22 ComInterop.aspx.cs).
private void btnObject2_Click(object sender,
System.EventArgs e)
{
ASPToolsClass
oVFP = new ASPToolsClass();
object loCustomer
= oVFP.ReturnObject("aspCustomer");
string lcCompany
= "";
if ( (bool)
this.CallMethod(loCustomer,"Load","4") )
{
object loData
= this.GetProperty(loCustomer,"ODATA");
lcCompany =
(string) this.GetProperty(loData,"COMPANY");
}
this.lblErrorMsg.Text
= lcCompany;
}
Ah, much better. Less code and much more readable and you
might actually remember this syntax. As you can see using this sort of logic
you can drill down into any kind of object that returns data dynamically but
you will have to know its exact interface there won't be any Intellisense to help you out. This applies not just to
FoxPro objects returned as non-COM objects, but also to
many system type objects that Windows publishes such as ADSI (Active Directory)
and WMI (Windows Management Instrumentation) which publish their provider
specific interfaces dynamically without support in type libraries. As long as
you know what the names of properties and methods are you can retrieve the data
easily.
Note that there a number of other invocation modes availalable including the ability to read 'fields' (as
opposed to properties) and set property/field values both on .NET and COM
objects dynamically. All this is possible through the Reflection interface that
.NET publishes and this provides powerful runtime support for type discovery.
Passing ASP.NET objects to VFP COM objects
If you've used COM with classic ASP you might recall that
ASP used to publish a couple of interfaces that made it possible to access the
ASP intrinsic objects such as Request, Response, Server, Application and
Session etc. directly from within VFP code. With ASP.NET this functionality is
still supported through the ASPCOMPAT directive on an ASP page.
The IScriptingContext interface no
longer works. IScriptingContext in classic ASP caused
two methods OnStartPage and OnEndPage
to fire when an ASP request occurred. OnStartPage
automatically passed Context object as a parameter. The Context object provides
the ability to retrieve the various intrinsic objects. This interface no longer
appears to work, even though the ASP.NET docs state that it should work (no
word on whether this is a bug in .NET or VFP).
More recently Microsoft recommended using the ObjectContext interface instead of IScriptingContext,
and this interface properly works with VFP COM objects. The ObjectContext
class provides the same functionality as the IScriptingContext
Context container object in addition to provide COM+ services and transaction
management. The ObjectContext object is based and uses
the COM+ services to provide the functionality to VFP.
To access the object in VFP and retrieve ASP object you can
use the following method of the AspTools class example
as a reference (Listing 23 asptools.prg).
FUNCTION ASPObjects() as Void
*** Grab the object context
oMTS =
CreateObject("MTxAS.AppServer.1")
oContext = oMTS.GetObjectContext()
*** Retrieve some of the ASP objects
loRequest = oContext.item("Request")
loResponse = oContext.item("Response")
loSession = oContext.item("Session")
lcOutput=""
THIS.cErrorMsg=""
*** Query String
lcOutput = "<PRE>QueryString (Method): " +
loRequest.QueryString("Method").item()+"<br>"
*** Full QueryString
lcOutput = lcOutput + "Full QueryString: " +
loRequest.QueryString("").item() + "<BR>"
*** Server Variable
lcOutput = lcOutput + "Browser: " +
loRequest.ServerVariables("HTTP_USER_AGENT").item() +
"<BR>"
*** Form Variable
lcOutput = lcOutput + "Form Company: " +
loRequest.Form("txtCompany").item() + "<BR>"
*** Accessing and assigning Session Vars
lcOutput = lcOutput + "Session VFPCreatedSession:
"
IF !ISNULL(loSession.Value("VFPCreatedSession")
)
*** Show it if it
exists
lcOutput =
lcOutput +
loSession.Value("VFPCreatedSession") + "<p>"
ELSE
*** Otherwise set
the session var
loSession.Value("VFPCreatedSession") = "VFPCreatedSession
Value " + TIME()
ENDIF
lcOutput = lcOutput + "<h2>Query
String</h2>"
loQueryString = loRequest.QueryString
FOR EACH lcFormVar in loQueryString
lcOutput =
lcOutput + lcFormVar + "=" + ;
loRequest.QueryString(lcFormVar).Item() + CR
ENDFOR
lcOutput = lcOutput + "<h2>Server
variables</h2><PRE>" + CR
loServerVars = loRequest.ServerVariables
FOR EACH lcFormVar in loServerVars
IF
lcFormVar="ALL_HTTP"
LOOP
ENDIF
lcOutput =
lcOutput + lcFormVar + "=" + ;
loRequest.ServerVariables(lcFormVar).Item() + CR
ENDFOR
*** Form Vars
lcOutput = lcOutput + "<h2>Form
Variables</h2>" + CR
loFormVars = loRequest.Form
FOR EACH lcFormVar in loFormVars
lcOutput =
lcOutput + lcFormVar + "=" + ;
loRequest.Form(lcFormVar).Item() + CR
ENDFOR
lcOutput = lcOutput + "<PRE>"
loResponse.Write(lcOutput + THIS.cErrorMSg)
RETURN
To call this from ASP.NET simply use
the code in Listing 23.1 (AspObjects.aspx).
<%@ Page ASPCOMPAT=true language="c#"
Codebehind="AspObjects.aspx.cs" AutoEventWireup="false"
Inherits="ASPInterOp.AspObjects" %>
<html>
<h2>VFP
access to ASP intinsic objects</h2>
<hr>
<form
action="AspObjects.aspx?Method=Test&Parm2=Another+Parm"
METHOD="POST">
LastName:
<input name="txtLastName" value='<%=
Request.Form["txtLastName"]%>'><br>
Company:
<input name="txtCompany"
value='<%= Request.Form["txtCompany"]%>'><p>
<input
type="Submit" name="btnSubmit">
</form>
<%
if
(Request.Form["btnSubmit"]
!= null )
{
Response.Write("<hr><i>Generated from within Visual
FoxPro:</i><p>");
ASPToolsClass oVFP = new ASPToolsClass();
oVFP.ASPObjects();
}
%>
</html>
The code in the page checks to see to only access the Fox
server if the form was submitted, then calls the method and echos
back the request information in HTML format as generated by the Fox server.
For those of you familiar with classic ASP and COM note that
there are a few subtle differences in behavior of the various objects provided.
For example, you can no longer access the various collections without
parameters. For example, Request.QueryString() used to return the full querystring
in ASP, but fails in ASP.NET. Basically any access of a collection item that
doesn't exist returns a NULL rather than a null string (""), which
means you may need additional error handling if you can't guarantee that a value
is actually available. Otherwise things like this:
Request.Form("txtUnPostedVar").Item()
Will fail with a data type error as the Item method doesn't
exist on a null reference.
Furthermore be aware that if you use the Response object in
combination with ASP.NET Web forms that the results may not be exactly what you
expect. Web Forms do not use the standard Response stream and place text only
after the entire page has rendered. So if you use Response.Write
before the page has rendered the output from it will likely end up at the very
top of the page before the <html> tag of the ASP.NET page. Using Response.Write from within VFP thus only makes sense if the
COM object will generate the entire HTTP output, or if the calling ASP.NET page
also uses Response output rather than the Web Forms engine (ie.
no Server Controls).
Passing DataSets as XML between VFP and .NET
As described earlier.NET uses a new data
access metaphor in the ADO.NET architecture by utilizing DataSets
and XML to pass data around applications. For VFP applications this
means that the easiest way to pass data to .NET often is in the form of XML. VFP's CURSORTOXML() is capable of
exporting data in a format that .NET understands and can import into a DataSet fairly easily. Consider the following method
returning a cursor in XML format to the ASP.NET page(Listing
23.1 asptools.prg).
FUNCTION XMLCustList(lcCompany as String) as String
*** VFP Sample Data
lcDataPath = VFPSAMPLEDATA
this.cDataPath = lcDataPath
lcWhere = ""
IF !EMPTY(lcCompany)
lcWhere = "
WHERE Company = lcCompany "
ENDIF
SELECT company,contact,PADR(TRIM(city) + ", " +
Country,60) as Location,Phone ;
FROM (lcDataPath
+ "Customer") ;
&lcWhere ;
ORDER BY company
;
INTO CURSOR
TQuery
lcXML = ""
CURSORTOXML(ALIAS(),"lcXML",1,32,0,"1")
RETURN lcXML
To use this data in .NET in a DataSet
you can load a new DataSet object from the returned
XML using code like the following (Listing 23.2 ComInterop.aspx.cs).
private void btnDataSet_Click(object sender,
System.EventArgs e)
{
ASPToolsClass
oVFP = new ASPToolsClass();
string lcXML =
oVFP.XMLCustList("");
DataSet loDS =
new DataSet();
loDS.ReadXml( new
StringReader(lcXML) );
this.oGrid.DataSource = loDS.Tables[0];
this.oGrid.DataBind();
}
The ReadXml method of the DataSet can read XML returned from VFP and import into a DataTable with all of the type information intact. For
example, if you returned the MaxOrdAmt field you can
check the type with:
this.lblErrorMsg.Text =
loDS.Tables[0].Rows[0]["MaxOrdAmt"].GetType().Name;
which returns 'decimal' which is .NET's translation for the currency type in VFP.
What about passing data the other way around? From .NET to VFP? I'll show you how to pass a DataSet from .NET to VFP and manipulate the data directly
out of the DataSet a little later in the 'Calling
.NET components from VFP section'. This process works, but can be tricky to
work with because you have to know the exact interfaces of the DataSet and the exact layout of the data.
You can also pass XML as a string back to the VFP
application. Unfortunately VFP has no built in way to utilize this XML directly
using say XMLTOCURSOR(). There are a couple of
problems with turning DataSets into VFP data the
schema information of the datasets do not necessarily contain all the data
needed to create a VFP cursor from the data, so a parser would have to make two
passes through the data to create the field sizes. This can create problems
with field sizing and has potential performance problems.
One way that you can import DataSets
in VFP from XML is to use wwXML with some manual
intervention. Consider the following ASP.NET page that creates a DataSet from the SQL Server Pubs database then passes the DataSet to VFP via an XML string (Listing 23.3 ComInterop.aspx.cs).
private void btnDataSetToXML_Click(object sender,
System.EventArgs e)
{
string lcID =
"%";
DataSet ds = new
DataSet();
string
cConnection = "server=(local);database=pubs;uid=sa;pwd=";
SqlConnection oConn = new
SqlConnection(cConnection);
SqlDataAdapter
oAdapter = new SqlDataAdapter();
oAdapter.SelectCommand
=
new
SqlCommand("select * from Authors where au_id like '" +
lcID + "%'",oConn);
oConn.Open();
oAdapter.Fill(ds,"authors");
oConn.Close();
// *** This code
passes the DataSet to VFP as XML
ASPToolsClass
oVFP = new ASPToolsClass();
StringWriter
loWriter = new StringWriter();
ds.WriteXml(
loWriter );
// *** VFP
returns an HTML table of the data passed to the method
this.lblCounterList.Text = oVFP.XMLDataSet(loWriter.ToString(),"authors");
}
The code in the VFP COM object uses the XML to create a
cursor, and then just to demonstrate that it got the data returns it as an HTML
table. You can use wwXML (included with the samples)
which has a method called DataSetXMLToCursor to
create a VFP cursor from an individual DataTable
contained within a DataSet. Because of the
limitations of the schema published by a DataSet, wwXML requires that you pre-create the cursor that the data
is imported to (Listing 23.4 asptools.prg).
FUNCTION XMLDataSet(lcXML as String,lcCursor as String) as
String
oXML = CREATEOBJECT("wwXML")
CREATE CURSOR Temp (au_id c(10), au_lname c(15), Contract
L, PK I)
oXML.DataSetXMLToCursor(lcXML,"temp","authors")
*** Just echo the data back as an HTML string
RETURN this.ShowCursor()
Note the CREATE CURSOR command to pre-create the table that
you're importing to. wwXML
uses the structure of the table to import the XML data into the cursor thus
avoiding some of the schema limitations. But this limitation also means that
you have to know what type of data you're expecting to import beforehand.
Debugging in .Net is just as complicated as it is in ASP
classic as the COM object is a compiled application that runs inside of IIS, so
by default you can't debug the COM server. However, with a little trickery you
can actually debug your components by using the VFP IDE to instantiate the
object for you and return it to the ASP.Net page. This idea was originally from
Maurice de Beijer who posted an interesting article on how to pass control to
VFP via Accessibility objects (
http://www.theproblemsolver.nl/aspdevelopmentanddebugging/index.htm).
I had problems with this approach and found a slightly
different, but similar way to accomplish the same thing by adding a property and
a couple of methods to my COM server:
oVFPDebug = .NULL.
************************************************************************
* ASPTools :: GetDebugInstance
****************************************
*** Function: Allows debugging of the server
*** Pops up debugger on SET STEP or dialog on
error
************************************************************************
FUNCTION GetDebugInstance as ASPTools
LOCAL loObject
THIS.oVFPDebug = CREATEOBJECT("VisualFoxPro.Application.7")
THIS.oVFPDebug.Visible = .T.
THIS.oVFPDebug.DoCmd("cd " + THIS.cAppStartPath)
*** Loader for classlibs (header of this file)
*** Makes sure that the class is found and can load
THIS.oVFPDebug.DoCmd("DO ASPTools")
loObject = THIS.oVFPDebug.Eval("CREATE('asptools')")
RETURN loObject
ENDFUNC
* ASPTools :: GetDebugInstance
************************************************************************
* ASPTools :: CloseDebugInstance
****************************************
*** Function: Shuts down the debug instance created with
*** GetDebugInstance
************************************************************************
FUNCTION CloseDebugInstance()
THIS.oVFPDebug.visible = .F.
THIS.oVFPDebug = 0
ENDFUNC
* ASPTools :: CloseDebugInstance
This approach basically instantiates an instance of the
Visual FoxPro IDE as a COM object and creates an instance of the object and
returns that instance back to the ASP.Net page.
To access this functionality from .Net you'd use code like
this:
ASPToolsClass oVFP = new ASPToolsClass();
object loVFP = oVFP.GetDebugInstance();
// *** casting doesn't work as we have an IDispatch
pointer
// ASPToolsClass loTemp = (ASPToolsClass) loTemp;
// *** We'll have to use indirect calls with Reflection
string lcHtml = (string)
this.CallMethod(loVFP,"HelloWorld");
int lnId =(int) this.CallMethod(loVFP,"GetProcessId");
oVFP.CloseDebugInstance();
Voila you can debug your VFP COM server in real time. Set
a breakpoint in any of the methods called and the debugger will pop up. Note
that you will not be able to directly access the new reference and have to use
the indirect method calling mechanisms described earlier like CallMethod() and
GetProperty() if you are using C# or VB.Net with Option Strict. The reason for
this is that the ASPToolsClass is a wrapper for the actual COM object, but not
the COM object itself. This means the COM object can't be cast to an
ASPToolsClass object and you need to use indirect method and property access.
However, with this in place you can now set breakpoints in
your code and the debugger will pop up for you as needed. Any failures too will
pop up an error dialog in the VFP IDE and you can examine the state of the
application in the debugger. While not optimal because of the indirect object
reference requirement for you object, this should nevertheless be a big help in
debugging COM components. FWIW, this process would be easier in Visual Basic
which can deal with untyped COM objects when Option Strict is off.
This works in classic ASP as well, and is in fact a little
easier.
<%
SET oVFP = Server.CreateObject("aspdemos.asptools")
set loVFP = oVFP.GetDebugInstance
Response.Write( loVFP.IncCounter("EssentialFox",0) )
oVFP.CloseDebugInstance()
%>
Here you can call methods directly and you can simply
rename your main server reference to something else and assign the debug object
to the object var instead which means you can debug by simply adding the
GetDebugInstance() and CloseDebugInstance() calls.
ASP.NET and VFP COM object performance
ASP.NET changes the mechanism of how COM objects are
accessed considerably compared to classic ASP. As a result COM interop from ASP.NET tends to be somewhat slower than it
was with classic ASP.
The main difference is that ASP.NET uses the Multi-Threaded
Apartment (MTA) model to run internal components, while classic ASP uses the
Single Threaded Apartment (STA) model. Visual FoxPro (and Visual Basic) COM
objects are STA components each object instance runs on a single thread and
must always be accessed on the same thread that created it. MTA components can
run on any thread and be invoked from different threads, because they are
assumed to be thread safe. The MTA provides for
potentially higher performance as the system has to do much less work to fire a
method of an object as it doesn't have to keep track of which thread created
the component. The MTA model is a big reason for the improved performance of
ASP.NET as a Web backend engine in combination with the compiled nature of the
code that it runs.
Natively ASP.NET runs in the MTA model and in order to run VFP/VB components
the ASPCOMPAT page directive is required to switch the page in STA model
operation. This has several implications. First pages that use ASPCOMPAT must
be managed differently than pages that are running in MTA the system once
again must track threads and make sure components run on the proper threads
that they were created on. This switch affects performance of the individual
page as well as the overall ASP system while any pages that require ASPCOMPAT
are active.
In addition, ASP.NET is optimized for managed code and
calling out into unmanaged COM components requires some overhead.
All of this is to say that running COM components in ASP.NET
is going to be slower than running them in classic ASP applications. I ran a few
tests on the IncCounter example I previously
mentioned. To keep things simple I only used Response.Write() output code
when I tested the performance with roughly identical ASP and ASPX pages. I
tried the component both with and without registering it under COM+. To test I
ran Visual Studio
Test Center,
created a test script with just a sinlge page in it
(the ASP or ASPX page). I then ran through 5 sets of 5 minute tests against a
single URL and took the average value from these tests (which were very consistent
BTW). The following Test Machine was used: Pentium III 1ghz,
512 megs memory Windows 2000 Advanced Server SP2). I also made sure that the
ASP.NET application was re-added to the .NET project and recompiled each time
the component was moved in and out of COM+. The ASP .NET application also was
set to Release mode and the configuration settings with debug settings turned
off IOW, optimized for production testing (incidentally not doing so as I did when I ran the first few tests
didn't affect performance all that much less than 2% on these test).
I kept the tests really simple to measure mainly the COM
overhead. The classic ASP code is just:
<%
SET oVFP =
Server.CreateObject("aspdemos.asptools")
Response.Write(
oVFP.IncCounter("EssentialFox",0) )
%>
The ASP.NET code is:
private void Page_Load(object sender, System.EventArgs e)
{
ASPToolsClass
oVFP = new ASPToolsClass();
Response.Write(
oVFP.IncCounter("EssentialFox",0) );
}
Here are the results:
|
|
Classic ASP
|
ASP.NET
|
|
Plain COM
|
118 rps
|
99 rps
|
|
COM+ Component
|
61 rps
|
67 rps
|
Notice that classic ASP is about 20% faster for plain
operation. It's interesting that the COM+ component access is considerably
slower both for classic ASP and ASP.NET so much so that the overhead probably
removes the actual performance differences between Classic and ASP.NET. In fact
with COM+ components .NET is actually slightly faster.
The ASP code here is very simple it simply instantiates
the object and does a Response.Write() on the result from IncCounter().
This demonstrates basically the call overhead of the methods plus a basic data
access operation in the VFP code. The numbers change drastically if you now add
a few calls to these methods
<%
SET oVFP =
Server.CreateObject("aspdemos.asptools")
Response.Write(
oVFP.IncCounter("EssentialFox",0) )
Response.Write(
oVFP.IncCounter("EssentialFox1",0) )
Response.Write(
oVFP.IncCounter("EssentialFox2",0) )
Response.Write(
oVFP.IncCounter("EssentialFox3",0) )
Response.Write(
oVFP.IncCounter("EssentialFox4",0) )
%>
|
|
Classic ASP
|
ASP.NET
|
|
Plain COM
|
118 rps
|
84 rps
|
|
COM+ Component
|
48 rps
|
58 rps
|
Notice how the performance of classic ASP stays almost
stable even with the additional COM calls- it appears that most of the overhead
is in the creation of the object with very little overhead for additional
method calls. Calling methods is fairly fast and doesn't affect performance
much. With ASP.NET however, repeated COM calls cause
additional overhead as code is crossing the managed to unmanaged boundaries on
each COM method call or property access performance drops significantly for
every added COM call.
But look at the COM+ numbers. In all scenarios running a
COM+ component seems to slow down performance significantly and the difference
between ASP and ASP.NET actually switched to an advantage for .NET. But
performance stays very steady regardless of accesses to the component and in
fact ASP.NET is faster with COM+ components.
Regardless, of the slower numbers with .NET keep in mind
that the even the lower numbers are rather acceptable in terms of performance!
If you can sustain even the slowest 40 requests a second on a single server is
still close to 3.5 million hits in 24 hour period, which is impressive for the
test hardware it's running (midrange desktop machine w/o fully optimized
hardware).
But regardless it's important to understand that there is a
performance penalty to pay when using ASP.NET over classic ASP. In fact, if
you're building an application that's primarily using COM objects to perform
their business logic or even have applications that serve all your HTML content
from within a COM object (some backend engines use ASP as a Web front end)
classic ASP may actually be a much better choice for performance reasons.
Comparing plain COM operation with lots of method calls to COM components you
can see that performance can multiple times faster with classic ASP.
Keep in mind that this test mainly tests for COM call
overhead not the actual speed of the code running. As you run requests that run
more code inside the VFP component the call overhead becomes less important.
But if you're accessing lots of properties or short quick method calls (which
often is typical for business object access) you will see performance issues
similar to this test.
Accessing .NET objects
through COM
In the last section I showed you how you can integrate COM
objects into .NET now let's look at going the other way by creating objects
or accessing native .NET objects from within a COM client application like
Visual FoxPro.
Do you need .NET from your VFP apps?
Before you do this, you should think hard about your reasons
for doing so. .NET provides many new features in an easy to access mechanism,
but realize that you can probably access that same functionality through other
non-.NET mechanisms as well. If your only goal is to access some feature that
.NET provides you're probably better of skipping it. The other scenario of
course is true interop between two applications or
operation between an application upgrade that is gradually being moved to .NET.
If you integrate .NET into your VFP application you should
realize that you will incur the full requirements of the .NET platform:
- .NET Framework must be installed
You have to make sure that the framework is
installed and if your application is distributed it will have to probably
provide the 25meg or so runtime with it as few machines to date have the
framework installed. You have to make sure that the proper version of the
.NET runtime is installed if you don't install it yourself.
- Hardware requirements
The .NET framework requires fairly heft hardware
to run on especially memory. Typical .NET components will incur about 30 meg memory footprint for the first one loaded (which is
the runtime, plus .NET services, plus your actual components footprint.
Additional components or EXEs will have smaller
footprints.
- Registration of components
.NET COM components don't register like standard COM components and
must use .NET specific tools (RegAsm.exe or the appropriate runtime
libraries) to register a component.
The point is that by including .NET with your VFP
application, you're essentially requiring two separate development runtimes to
be installed and in some cases it may actually be better to go all the way to
.NET or stick completely with VFP/Win32/COM.
Publishing a .Net component to COM
As with COM interop from .Net using .Net objects from VFP
appears to be a simple matter of creating a class and publishing the class as a
COM object. However, there's more to it than this especially if you are planning
to pass native .Net objects back to VFP. The type differences between COM and
.Net make it difficult and sometimes not possible to access all the features
that the .Net framework offers in your VFP applications.
This means that in many cases you may not be able to
directly publish your .Net business or system classes into COM, but rather
require wrappers that expose the functionality in a COM compatible way. I'll
give an example of this concept a little later.
But let's start with a cool example that I had use for on
my Web site: A small component to create thumbnail images from existing image
files as shown in Listing 24.
using System;
using System.Drawing;
using System.Drawing.Imaging;
using System.Runtime.InteropServices;
namespace DotNetCOM
{
[ClassInterface(ClassInterfaceType.AutoDual)]
[ProgId("DotNetCOM.wwImaging")]
public class wwImaging
{
public bool CreateThumbnail(string lcFilename,
string lcThumbnailFilename,
int lnWidth, int
lnHeight)
{
try
{
Bitmap loBMP = new Bitmap(lcFilename);
ImageFormat loFormat = loBMP.RawFormat;
decimal lnRatio;
int lnNewWidth = 0;
int lnNewHeight = 0;
//*** If the image is smaller than a
thumbnail just return it
if (loBMP.Width < lnWidth && loBMP.Height <
lnHeight)
{
loBMP.Save(lcThumbnailFilename);
return true;
}
if (loBMP.Width > loBMP.Height)
{
lnRatio = (decimal) lnWidth / loBMP.Width;
lnNewWidth = lnWidth;
decimal lnTemp = loBMP.Height * lnRatio;
lnNewHeight = (int)lnTemp;
}
else
{
lnRatio = (decimal) lnHeight /
loBMP.Height;
lnNewHeight = lnHeight;
decimal lnTemp = loBMP.Width * lnRatio;
lnNewWidth = (int) lnTemp;
}
System.Drawing.Image imgOut =
loBMP.GetThumbnailImage(lnNewWidth,lnNewHeight,
null,IntPtr.Zero);
loBMP.Dispose();
imgOut.Save(lcThumbnailFilename,loFormat);
imgOut.Dispose();
}
catch (Exception ex)
{
this.SetError(ex.Message);
return false;
}
return true;
}
protected void SetError(string lcError)
{
if (lcError.Length == 0)
{
this.cErrorMsg = "";
this.bError = false;
}
else
{
this.cErrorMsg = lcError;
this.bError = true;
}
}
}
}
CreateThumbnail() takes input and output filenames and the
size for the thumbnail to be created. Rather than sizing the image absolutely
and distorting the image this method tries to maintain the aspect ratio by
figuring out which side to reduce the passed parameter. So if the picture is
wider the width value is used if it is higher the Height value is used. The bulk
of the code deals with calculating this ratio and the right size for the image
to create. The actual image conversion is actually handled natively through the
.Net framework by using the CreateThumbnailImage method of the bitmap or image
objects which creates a new image object that can then simply be saved to disk
with the Save method. CreateThumbnailImage takes the Height and Width parameters
and a pointer to a callback function (null) and another pointer to a data block
which is uncharacteristically typed as a Void * (an unmanaged type). The latter
needs to be passed as IntPtr.Zero rather than null.
I'm using a couple attributes on the class to explicitly
force several options of how the COM class interface is published. If these two
options were left out defaults would be used. The ClassInterfaceType.AutoDual
forces the COM object to be created using dual interfaces which creates both
IDispatch (Late binding) and CoClass (Early binding) interfaces. The default is
AutoDispatch, which works fine for VFP usage, but doesn't provide the interfaces
necessary to use Intellisense, so overriding this attribute is important. The
alternative is to explicitly create an Interface for all published methods of
the class, then create a separate class with the implementation, which is
obviously more tedious. Unless you have a specific need for the interface
definition there is no need to go this route.
The ProgId is also overridden explicitly the default is
the namespace plus the name of the class, which in the case above is exactly the
same as the default. I like to override this because in many cases the namespace
may not be the name I would choose for the server's ProgId.
The attributes of the class are essential to have types
exported into COM. In addition you need to force the .Net framework to actually
emit the type library. When this code compiles it really only creates a standard
.Net class. If you're using Visual Studio.Net you can simply specify that you
want your project to be compiled as a COM class (Figure 5).
Figure 5 Visual Studio.Net can automatically
compile your project into a COM component by setting the 'Register for COM
interop' option in the Project's Build options. To get this dialog right click
on the project and select Properties.
If you don't use VS.Net you can the RegAsm.exe
utility to perform this same functionality. Both mechanisms create a type
library for all the types defined in your project and create the appropriate
registry entries.
The class attributes in the source code determine how the
additional proxies used by the .Net COM runtime are invoke the object. Unlike
other COM objects, if you check the ClassId in the registry you'll find it
doesn't actually point at your DLL, but rather at a generic .Net framework DLL
mscoree.dll. Other keys then define the location of the actual DLL that the
generic .Net COM object runtime must load and invoke. Figure 6 shows what the
registry entry looks like.
Figure 6 The registry entry for the .Net COM
component points at a generic runtime COM dll mscoree.dll, rather than your
DLL. The COM runtime loads the actual assembly and sets up the appropriate
proxies.
Returning and accessing Objects from .Net
You can also return complex data like objects from .Net.
Let's add another method to the class called GetImageInfo that returns the
Height and Width and Screen Resolution of an image by returning an object as
shown in Listing 25:
public wwImageInfo GetImageInfo(string lcImageFile)
{
try
{
Bitmap loBMP = new Bitmap(lcImageFile);
wwImageInfo loInfo = new wwImageInfo();
loInfo.Width = loBMP.Width;
loInfo.Height = loBMP.Height;
loInfo.HorizontalPixelResolution =
loBMP.HorizontalResolution;
loInfo.VerticalPixelResolution =
loBMP.VerticalResolution;
loBMP.Dispose();
return loInfo;
}
catch(Exception ex)
{
this.SetError(ex.Message);
}
return null;
}
The object is defined as follows:
public class wwImageInfo
{
public int Height = 0;
public int Width = 0;
public float HorizontalPixelResolution = 0;
public float VerticalPixelResolution = 0;
}
Now recompile the class in VS.Net. The first thing that
you'll notice is that you won't be able to do this if VFP is still running. Even
if you released the object in Visual FoxPro the object will remain locked in
memory.
According to Microsoft the COM Callable Wrapper that
instantiates COM objects will never release the objects that have been loaded by
unless the Interop layer explicitly forces these objects to unload. This needs
to be done on a low COM level using a specific interface that .Net components
can publish IDisposable. However, this cannot be directly accessed through VFP
so there's no way to unload .Net COM objects at this time. No way except
shutting down Visual FoxPro that is. For what it's worth the same is true of
Visual Basic and other COM clients. This may be addressed in future versions but
it is an issue now. Note that if you load a .Net COM object you incur the memory
hit of the .Net runtime (about 3 megs) once. Any subsequent .Net objects loaded
will have very little memory impact.
Ok, so shut down VFP and start her back up. Then try this
code:
o = CREATEOBJECT("DotNetCom.wwImaging")
loImage = o.GetImageInfo("d:\westwind\wconnect\wcpower.gif")
? loImage.Height
? loImage.Width
? loImage.HorizontalPixelResolution
You've just retrieved the content of the object passed back
from .Net. But notice that you didn't get Intellisense on the returned object.
The reason for this is that we need to provide the proper attributes just like
for the main wwImaging class in order to bring the type information interfaces
back for VFP to evaluate. Change the class header to:
[ClassInterface(ClassInterfaceType.AutoDual)]
class wwImageInfo {... rest of class here}
Then shut down VFP and recompile the class and try the
above code again. Voila, Intellisense now works.
Returning .Net built-in objects
What about .Net objects? If you look at the code for the
GetImageInfo method you might ask yourself, why this separate object? Why not
just pass back the full Bitmap object and let VFP deal with it directly?
To see what happens if you add the following method to the
class that returns the bitmap directly (Listing 26 wwImaging.cs).
public Bitmap GetImageInfoBitmap(string lcImageFile)
{
try
{
Bitmap loBMP = new Bitmap(lcImageFile);
wwImageInfo loInfo = new wwImageInfo();
loInfo.Width = loBMP.Width;
loInfo.Height = loBMP.Height;
loInfo.HorizontalPixelResolution =
loBMP.HorizontalResolution;
loInfo.VerticalPixelResolution =
loBMP.VerticalResolution;
return loBMP;
}
catch(Exception ex)
{
this.SetError(ex.Message);
}
return null;
}
Then try the following code with a reasonably large image
in VFP:
o = CREATEOBJECT("DotNetCom.wwImaging")
FOR x = 1 TO 100
loBMP = o.GetImageInfoBitmap(
"\westwind\rick\photoalbum\maui_2002\campingLaPerouse_big.jpg")
lnHeight =loBMP.Height
ENDFOR
RETURN
Before you run this actually bring up TaskManager and
highlight VFP in it. As you run keep an eye on the memory usage! In my test with
a 40k JPG file running this code resulted in VFP ending up with over 200 megs of
memory used!!!
This means that even though we are releasing the object in
VFP, it's not completely releasing in .Net. Keep Task Manager running though,
and run maybe the CreateThumbnail() method again a few times. Notice that at
some point the memory does get released. This is .Net's garbage collector
eventually freeing the memory for the objects in use so the objects release
eventually, just not right away.
To avoid the enormous resource use in this example above
you have to manually release resources used by the bitmap object by doing:
loBMP.Dispose()
Like most .Net classes Bitmap supports a Dispose method
that cleans up resources used, although it doesn't mean that the object
reference is released or 'disposed' at all. Dispose is .Net talk for 'Object:
clean up behind yourself'. Adding loBMP.Dispose() before the ENDFOR keeps memory
usage reasonable by cleaning up the bitmap data even if the object reference
itself is not released inside the .Net runtime that manages the lifetime of the
COM called .Net object.
Because of the release issues you'll want to consider
carefully if you want to pass .Net objects to VFP especially in looping
situation as this will create large numbers of object references in the .Net
AppDomain that the COM Interop layer creates. These objects might not
immediately release until the garbage collector gets to them. Be aware of what
resources are in use and if the object is not passed back to .Net it's a good
idea to call Dispose() (if available) or any other cleanup methods that the
object might provide.
Passing objects to .Net methods
Assume for a minute that you want to pass an object from
Visual FoxPro to your .Net application like this:
USE tt_cust
SCATTER NAME loCustomer MEMO
o = CREATEOBJECT("DotNetCom.DotNetComPublisher")
? o.ReturnCustomer(loCustomer) && prints content of
Company field
If you'll remember from the previous section on retrieving
dynamic properties in .Net, passing objects from VFP to .Net results in a
generic object that isn't defined in the type library. And as before we have to
resort to retrieving the content and accessing methods of the passed object in
the .Net code using the Reflection InvokeMember interfaces.
Here's how to implement this method in .Net using the
GetProperty method mentioned earlier to simplify access to properties:
public string ReturnCustomer(object loObject)
{
//*** loObject is passed from
VFP retrieve Company field and return
return (string)
this.GetProperty(loObject,"Company");
}
You'll have to use the same type of thing for methods using
the CallMethod() method introduced earlier.
Is this always necessary? It depends on whether you provide
an import COM type library in the .Net project or not. If you want to be able to
pass a known type that is published in the VFP code as a COM object then you can
import the type library and reference that type explicitly. But if you simply
pass a 'generic' object you will always have to use Reflection's InvokeMember
(or the GetProperty/GetMethod shortcuts) to access the object's members.
Publishing types via COM is a lot of work though especially
if your application isn't already a COM object of some sort for example a
standalone desktop application likely will not publish anything to COM. But you
might consider the extra effort of exposing objects via COM even if you
otherwise wouldn't to allow the type library to be published and have it
accessible to .Net. In addition to easier type access you also gain the ability
to access the type in .Net with Intellisense which is otherwise lost to you.
Working with the DataSet object
So far it looks very easy to export objects from .Net to
VFP, right? And it is straight forward with your own objects and code. However,
things get more tricky when you start dealing with the some of the complex
objects that .Net itself publishes.
For example consider the following method that returns an
ADO.Net DataSet from the SQL Server Pubs database (Listing 27
DotNetComPubliser.cs).
//
add namespace: using System.Data.SqlClient
public System.Data.DataSet GetAuthorData(string lcID)
{
if (lcID == "" )
lcID = "%";
DataSet ds = new DataSet();
string cConnection = "server=(local);database=pubs;uid=sa;pwd=";
SqlConnection oConn = new SqlConnection(cConnection);
SqlDataAdapter oAdapter = new SqlDataAdapter();
oAdapter.SelectCommand =
new SqlCommand("select * from Authors where au_id
like '" + lcID +
"%'",oConn);
try
{
oConn.Open();
}
catch(Exception e)
{
return null;
}
oAdapter.Fill(ds,"Authors");
oConn.Close();
return ds;
}
Recompile the DotNetCom project again and now go back into
Visual FoxPro and try the following code:
o = CREATEOBJECT("DotNetCom.DotNetComPublisher")
loDs = o.GetAuthorData("172-32-1176")
? loDS.GetXml()
This code retrieves the DataSet from the Pubs database and
then retrieves an XML string of the data. We've retrieved a DataSet object from
.Net and are manipulating it in Visual FoxPro. You can access the methods and
properties of the Dataset as you would expect. However, also notice that
Intellisense is not working on the Dataset because .Net wasn't explicitly asked
to export it. This makes figuring out what properties are available of the full
Dataset object a little tricky.
In addition, collection based values are not accessible in
the same way as you can from inside of .Net. The following does not work:
? loDS.Tables["Authors"].Rows[0]["au_lname"] && Doesn't
work!!!
Named collections are common to native .Net objects, but
I've been unable to use named collection items through VFP. You can however use
them through positional collection values. The following does work:
? loDS.Tables.Item(0).Rows.Item(0).Item(1)
&& au_lname in the first row
There may be another way to get at the collection with
names but I couldn't find it. This at least allows access to the features of the
DataSet even though it can be hard to maintain code like this.
To demonstrate how to use a DataSet object in a VFP
application I created a small sample application against the PUBS SQL Server
sample database that retrieves a DataSet and allows displaying and editing of
the content inside of VFP. The updates can then be sent back to the .Net COM
object to save the changes into the SQL Server database. This sample can be
found in the ComAuthors.scx form file.
Figure 7 - The COMAuthors form contains fields
bound to a .Net DataSet. All the ControlSource properties are bound to
individual fields of a single row in the DataSet.
The key features of this form are a label control that acts
as the DataSet loader (in yellow in Figure 7), and two methods LoadList() and
LoadCustomer() that deal with retrieving content from the DataSet.
LoadList() retrieves the DataSet and LoadCustomer then goes
out to bind a specific customer to the form. Each of the fields on the form is
bound to a field in the current row of the dataset. The Controlsource property
points at:
THISFORM.oRow.Item(2)
Which is the first name of the Authors table in the Pubs
database. As you can see you'll have to have specific information about the
database schema to know which field you are binding to since we can't access the
fields by name in VFP.
To load the data from the DataSet the LoadList() method
needs to be called (Listing 24).
*** LoadList
LPARAMETERS llNoServerReload
IF !llNoServerReload
THIS.oDS = THISFORM.oNet.GetAuthorData("")
IF THISFORM.oNet.Error
WAIT WINDOW "Couldn't load data from .NET..." +
CHR(13) +;
THISFORM.oNet.ErrorMsg
RETURN
ENDIF
ENDIF
THIS.oCustList.Clear()
FOR EACH loRow IN THIS.oDs.Tables.item(0).Rows
THIS.oCustList.AddItem(TRIM(loRow.Item(1)) + ", " +
TRIM(loRow.Item(2)))
ENDFOR
The .Net method in the COM object that is called was shown
in Listing 23 above. The code in the LoadList() method calls the COM method and
returns the DataSet, then loops through and accesses each of the First and Last
names and sticks them into the list box. When an item in the list box is clicked
it calls the LoadCustomer() method to display the individual author (Listing
29).
LPARAMETERS lnIndex
lnIndex = lnIndex - 1
THIS.oRow =
THISFORM.oDS.Tables.item(0).Rows.item(lnIndex)
THISFORM.Refresh()
This code accesses the DataSet that is already downloaded
to the client side so no additional trips to SQL Server are performed at this
time. THIS.oRow is updated with the currently selected row of the DataSet and
the Form Refresh() simply forces all the fields on the form to refresh their
ControlSource values.
This is essentially a disconnected scenario where all
manipulation to the DataSet occurs offline. Only the initial pull of the data
causes the database to be accessed. All subsequent record reads are from the
local copy of the data. The update routines that save and update records of the
table also work against the local copy. In fact, changing the content of an
existing row in the DataSet is as easy as making a change to the field on the
form since the fields are bound to the recordset's Field objects the changed
data is automatically written back into the DataSet everytime a change is made.
Inserting a row into the DataSet requires a little more
work. Listing 26 shows the code from the New button event code.
loRow = THISFORM.oDS.Tables.item(0).NewRow()
*** Fix the empty NULLS
FOR x = 1 TO loRow.Table.Columns.Count
lcType =
LOWER(loRow.Table.Columns.item(x-1).DataType.Name)
DO CASE
CASE lcType = "string"
loRow.Item(x-1) = ""
CASE lcType = "decimal" OR lctype = "int"
loRow.item(x-1) = 0
CASE lcType = "boolean"
loRow.Item(x-1) = .F.
CASE lcType = "datetime"
loRow.Item(x-1) = { : }
ENDCASE
ENDFOR
lcSoc = INPUTBOX("Please Enter the Social Security
number:")
*** Pk Field must be updated!
loRow.Item(0) = lcSoc
THISFORM.oRow = loRow
THISFORM.Refresh()
There are a few notes of interest in the code in Listing
25. First off notice that there's a block of code that deals with setting the
default values for each field, by walking through the field collection. The
reason for this is that the Pubs SQL database is set up with NULLS enabled and
thus inserts a new record with all .NULL. values. VFP of course displays these
nulls in the fields which is not the effect you desire. Instead you would like
to see empty field values. What's interesting in this is that even if you have
default values set up for the database the values come down as NULLS, which is a
major shortcoming of the DataSet in providing useful data to display.
The code also asks for a Social Security number, that
identifies this record in the table and must be unique. It's important to
understand that rules are not checked at this point, so if you put in a
duplicate value for example, the DataSet will allow this and provide no way to
check for this, until the data is saved. The form includes two buttons to save
a local save and a server save.
The local Save operation saves the current record and its
changes back into the DataSet and basically deals only with any new rows.
Existing rows simply update the fields collection of the selected row and
immediately show their data in the DataSet. New rows however create a new
DataRow object which is not actually attached to the table until you save. So
New does the code in Listing 25 and creates a new oRow object that is
freestanding. The Local Save operation then checks for a new record and attaches
it to the current DataTable:
*** Check for New and Insert Row
IF THISFORM.oRow.RowState = 1
THISFORM.oRow.Table.Rows.InsertAt(THISFORM.oRow,0)
ENDIF
** Just refresh the list locally
THISFORM.LoadList(.T.)
It then calls back into LoadList() to force the list to
refresh from the local DataSet. The .T. parameter specifies the list is to be
created from the existing DataSet rather than retrieving the data again from SQL
Server, which would cause problems since the changes have not been saved to the
SQL Server yet.
To save the collectively changed data back into SQL Server
the following code is used:
IF !ISNULL(THISFORM.oDS)
llResult = THISFORM.oNET.UpdateAuthorData(THISFORM.oDS)
IF !lLResult OR THISFORM.oNet.Error
MESSAGEBOX("Error with update" + CHR(13) +
THISFORM.oNet.ErrorMsg,;
48,"DataSet Update")
ENDIF
ENDIF
This code calls back into the .Net COM object and passes
the changed DataSet back to it for updating in .Net. The code for the .Net
object's UpdateAuthorData is shown in Listing 31.
public bool UpdateAuthorData(DataSet loDs)
{
this.SetError("");
string cConnection = "server=(local);database=pubs;uid=sa;pwd=";
SqlConnection oConn = new SqlConnection(cConnection);
SqlDataAdapter oAdapter = new SqlDataAdapter();
oAdapter.SelectCommand =
new SqlCommand("select * from Authors",oConn);
try
{
// *** Create the Update/Insert Commands
SqlCommandBuilder oCmdBuilder = new
SqlCommandBuilder(oAdapter);
oAdapter.Update(loDs,"Authors");
}
catch (Exception ex)
{
this.SetError(ex.Message);
return false;
}
return true;
}
This code receives the DataSet from VFP via the loDs
parameter and then uses standard .Net data access code to call the Update method
of the DataAdapter to write the updated data back into the SQL database. It
writes the data and returns either true or false depending on success of the
Update operation.
Note that you much have to use this indirect approach to
updating the database, rather than updating the data directly from within VFP,
because VFP does not have direct access to the DataAdapter or CommandBuilder
objects. Although you can expose those objects through COM by subclassing them
and adding the appropriate export attributes, there are problems with the way
some of these objects are returned over COM. It can be made to work, but it's
actually much easier and more efficient to use this sort of go between routine
to perform the tasks for data retrieval and data storage for you.
Using .Net classes that don't work with COM
Datasets expose some of their functionality but not all of
them. Same is true for most other .Net components. Specifically it's very
difficult or in many cases simply not supported to access components that expose
collection objects.
There are two problems of why this is occurring: First most
.Net built-in objects make extensive use of overloaded methods (same methodname
different parameters/return values). Since COM doesn't support overloaded
methods only one of the methods in question can be exposed. Usually it'll be the
one that has the most parameters which means that calling many of the methods is
a lot more difficult in VFP than it is in .Net as you have to specify parameters
that are typically left off as 'defaults' in .Net. For example, the DataSet has
the ability to access collection items both by name and by index number which is
basically an operator overload of the [] expression. But VFP can only use one of
them in this case using indexed keys. With other classes like the Reflection
classes for example you simply cannot access the collections at all. In yet
other cases properties and methods simply are not exposed to COM at all.
I recently needed some functionality to read .Net type
information in order to import it into HTML Help Builder. Help Builder already
supports importing data from COM objects and VFP classes, so adding the ability
to also import from .Net components was a useful addition. This is fairly easy
with Reflection where in C# you can do something like this:
Assembly loAssembly;
loAssembly = Assembly.LoadFrom("d:\temp\someassembly.dll");
foreach (TypeInfo loType in loAssmbly.GetTypes()) {
MessageBox.Show(loType.Name);
Foreach (MethodInfo loMethod in loType.GetMethods() {
MessageBox(loMethod.Name);
}
}
You can basically loop through all the type info including
methods, properties, parameters, return values etc. It's very powerful and is a
signature of the type system in .Net.
It would have been nice if I could simply return this info
to VFP directly by simply creating a COM exposed
method that does:
public Assembly GetAssembly(string lcFilename) {
Assembly loAssembly;
loAssembly = Assembly.LoadFrom(lcFilename);
return loAssembly;
}
You can indeed receive this assembly inside of VFP.
loParse = CREATEOBJECT("wwReflection.TypeParser")
loAssembly = oParse.GetAssembly("D:\temp\wwscripting.dll")
loTypes = loAssembly.GetTypes()
? loTypes.Length
? loTypes.item[0].Name
You even get Intellisense on the Assembly object returned.
But unfortunately there's where the features end. The Types object is not
accessible (at least using standard methods for this object) and you can't loop
through this data the way you can in .Net. Bummer.
Since I really needed this functionality in my application
I decided that I needed to create a wrapper object that's properly exposed via
COM. Basically this object creates subobjects that somewhat mimic the format of
the reflection classes. In addition, I added functionality to also retrieve
documentation information from a C# code documentation file if that is available
and parsed that into the same object. I won't divulge this lengthy code here,
but I'll show the structure for these objects to give you an idea of how this
works:
[ClassInterface(ClassInterfaceType.AutoDual)]
[ProgId("wwReflection.TypeParser")]
public class TypeParser
{
// ** All X properties are native objects
public DotnetObject[] aObjects;
public Type[] aXObjects;
public int nObjectCount = 0;
public string[] aConstants;
public int nConstantCount = 0;
public bool lError = false;
public string cErrorMsg = "";
public string cFilename = "";
public string cXmlFilename = "";
public int GetAllObjects();
public bool ParseXmlDocumentation();
//
implementation not shown
}
[ClassInterface(ClassInterfaceType.AutoDual)]
[ProgId("wwReflection.DotNetObject")]
public class DotnetObject
{
public string cName = "";
public string cScope = "";
public string cHelpText = "";
public string cNamespace = "";
public ObjectMethod[] aMethods;
public int nMethodCount = 0;
public ObjectProperty[] aProperties;
public int nPropertyCount = 0;
public int LoadMethods(TypeInfo loType);
public int LoadProperties(TypeInfo loType);
//
implementation not shown
}
[ClassInterface(ClassInterfaceType.AutoDual)]
[ProgId("wwReflection.ObjectMethod")]
public class ObjectMethod
{
public string cName = "";
public string cParameters = "";
public string cRawParameters = "";
public string cDescriptiveParameters = "";
public string cReturnType = "";
public string cHelpText = "";
public string cScope = "";
public string cOther = "";
public string[] aParameters = null;
public int nParameterCount = 0;
// no methods
}
[ClassInterface(ClassInterfaceType.AutoDual)]
[ProgId("wwReflection.ObjectProperty")]
public class ObjectProperty
{
public string cName = "";
public string cType = "";
public string cScope = "";
public string cDefaultValue = "";
public string cFieldOrProperty = "";
public string cHelpText = "";
// no methods
}
You can see that this clipped interface that it uses nested
objects and arrays of objects in multiple classes to present a hierarchy similar
to what Reflection provides. But these are wrapped in a safe manner for COM
these classes are easily accessible from VFP and are now fully exposed via
Intellisense because all objects are exported as COM accessible objects. I can
now do:
loParse = CREATEOBJECT("wwReflection.TypeParser")
COMARRAY(loParse,10)
loParse.cFilename = "D:\temp\wwscripting.dll"
loParse.cXmlFilename = "D:\tempwwscripting.xml"
lnCount = loParse.GetAllObjects()
loObjects = loParse.aObjects
FOR x = 1 TO lnCount
LOCAL loObject as wwReflection.DotnetObject
loObject = loObjects[x]
? loObject.cName + loObject.cHelpText
loMethods = loObject.aMethods
FOR y = 1 TO loObject.nMethodCount
LOCAL loMethod as wwReflection.ObjectMethod
loMethod = loMethods[y]
? " " + loMethod.cScope + " " + ;
loMethod.cName + "(" + loMethod.cParameters + ")
as " +;
loMethod.cReturnType
? " " + loMethod.cOther
? " " + loMethod.cHelpText
ENDFOR
loProperties = loObject.aProperties
FOR y = 1 TO loObject.nPropertyCount
LOCAL loProperty as wwReflection.ObjectProperty
loProperty = loProperties[y]
? " " + loProperty.cScope + " " + loProperty.cName
+ ;
" as " + loProperty.cType
? " " + loProperty.cHelpText
ENDFOR
ENDFOR
In this scenario I made the decision that I will put all
the required parsing logic into the .Net component rather than letting the Fox
component deal with anything. So I did the fixup of the cHelpText property from
the XML documentation if available for example as well as parsing parameters
and return values into properly formatted strings for display rather than
returning arrays of parameters. In short I used the .Net component to perform
some of my 'business' logic for my application rather than serving a generic
purpose (it's still very usable generically for other applications though).
Obviously there are lots of choices if you create wrapper
objects from passing back internal .Net objects that VFP can access to
creating your own wrapper classes, to creating proxy methods that invoke the
appropriate method or property and simply return a value.
It's very possible, but it does require some extra work.
Debugging .Net classes from VFP
You can also debug .Net classes from VFP code by
configuring the .Net project. Basically you set up the .Net project that hosts
your COM exposes component by having it run VFP as the startup application. Any
calls into the COM DLL or Exe can then trigger breakpoints in the .Net code.
To set this up in Visual Studio .Net you can do the
following:
- Select the project that hosts your .Net class exposed
via COM in the Project Explorer
- Right click and select properties
- Got Configuration Properties | Debugging
- Set the Debug Mode to Program
- Set the Start Application to your VFP executable (IDE or
your own EXE)
- Set the Working Directory to where you want VPF to start
- Set any command line arguments you may need.
Figure 6.1 shows what the dialog looks like in VS.Net.
Figure 6.1 You can debug .Net components with
calls made from Visual FoxPro by configuring VFP as the project's startup
application. When your VFP code calls the .Net code VS.Net will stop on any
breakpoints.
Once this is configured properly you can now start your
project by pressing the Run button (f5) in VS.Net, which will fire up Visual
FoxPro or your application. You can create an instance of the .Net COM object
make a call on it and the VS.Net debugger will stop on any breakpoints set in
the .Net code.
If you've ever tried to debug COM objects called from VFP
before, I think you will appreciate how easy this process is compared to not at
all being able to debug a COM object by any means. Debugging in .Net in general
is a pure joy simply because any kind of code can be debugged even if it spans
multiple projects or as in this case multiple application environments.
Interop with Web Services
The final common mechanism to exchange data between VFP and
.NET data involves Web Services. I've left this one for last because I believe
that Web Services as a pure Interop technology are
not the best mechanism to pass data or logic around. It's slower than the other
mechanisms and involves additional configuration and setup that may be overkill
for common applications.
However, if the distributed Web Service metaphor makes sense
for your application design and you need to pass data over the Web anyway, then
Web Services can offer this functionality in a relatively painless matter with
easy tools available to publish Web Services from either the unmanaged COM side (VFP + SOAP Toolkit) or from .NET with
.NET Web Services.
Using .NET Web Services in Visual FoxPro
I don't want to go into great detail here on how to create a
Web Service with the SOAP Toolkit or .NET since these topics have been covered
ad nauseum in other articles and publications. For
.NET Web Services I'm going to use a Web Service from some previous articles.
You can view the article and download the code from: http://www.west-wind.com/presentations/dotnetwebservices/DotNetWebServices.asp.
To call a Web Service with Visual FoxPro you can use the
SOAP Toolkit, which is a COM client that can access Web Services and parse the
SOAP packets locally. In addition, the Toolkit provides an easy to use proxy
that pulls data down easily.
If you're returning simple types (strings, integers,
Boolean, DateTime values etc.) using the SOAP Toolkit
is as easy as the following code demonstrates (Listing 23).
LOCAL loProxy as MSSOAP.SoapClient
loProxy = CREATEOBJECT("MSSOAP.SoapClient")
loProxy.MsSoapInit("http://localhost/codeservice/codewebservice.asmx?WSDL")
? loProxy.HelloWorld("Rick")
? loProxy.GetServerTime()
? loProxy.ReturnXml("Riζck")
This requires that the SOAP Toolkit Version 2.0 is installed
on the client. You simply instantiate the SOAP client and point it at the WSDL
file that contains the service description. To get a .NET Web Services' WSDL
file just access the Web Service's URL with querysting
of WSDL (?WSDL), which is dynamically generated from the Web Service's class
interface.
The SOAP Toolkit then takes the WSDL content and adds the
ability to dynamically call the Web Service's methods through 'simulated'
methods of the proxy object. I say simulated because these methods are actually
being called internally by the SoapClient class
whenever a method that doesn't exist is accessed. The client parses the method
name, maps it to the WSDL file schema that describes the method signature and
then calls the Web Service method over the wire using the SOAP XML protocol.
The good news is that this is very easy to accomplish. The
bad news is that if something goes wrong things can be tricky to troubleshoot
as the simple Soap Proxy client is fairly limited. If there's a connection
problem or an error that's not directly returned from the SOAP Server the
client application will blow up with an unspecified error. For this reason the
Soap classes also include a lower level interface which requires a bit more
code to run the equivalent code basically allowing you to access the SOAP XML
content directly and parsing it.
Errors thrown by the server are forwarded to the simple SoapClient as COM exceptions. The error message of the
original COM error is thrown forward and the client can capture this error with
the VFP error handlers. A good way to write safe Web Service client code is to
use wrapper classes that wrap the proxy method calls to avoid blowing up in
code and retrieving the error. I use an Eval class
for this:
loEval = CREATEOBJECT("wwEval")
lvResult = loEval.Evaluate([loProxy.CrashMe()])
IF loEval.lError
?
loEval.cErrorMsg
ELSE
? lvResult
ENDIF
Unfortunately .NET throws some rather verbose error
messages. For example the following error message results from an invalid
connection used on the server (ie. a 'hard'
exception):
[WebMethod]
public string CrashMe()
{
// *** Simulate
an error
Exception ex =
new Exception("Invalid Connection String");
throw(ex);
return
"";
}
This
results in the following error message:
System.Web.Services.Protocols.SoapException: Server was
unable to process request. ---> System.Exception: Invalid Connection String
at
CodeService.CodeWebService.CrashMe() in
d:\westwind\codeservice\codewebservice.asmx.cs:line 164
--- End of inner
exception stack trace ---
Not much you can do with this error message other than log
it and let the user know the call failed.
Complex Types: Retrieving Objects from .NET
So far I've shown you how to retrieve simple types which is
pretty straight forward as the SOAP Toolkit can automatically convert these
types and pass them back as you would expect. If you want to return complex
parameters such as objects or DataSets from .NET you
will have to do a little more work since the SOAP toolkit cannot directly deal
with them. It actually offers two methods that you can use accessing the XML
directly or using the low level objects to construct objects to be loaded from
the XML. Frankly the latter approach takes a fair amount of code and requires
updating whenever the object structure changes that it isn't really worth
working with. In this situation it's actually easier to use the XML directly
instead.
The SOAP toolkit returns complex type results as XMLDOM Nodelists. A NodeList is a
collection of DOM nodes. It seems to me like a really odd choice to return the NodeList as opposed to the parent node of the list, but
that's the way the toolkit works. Consider the following Web Service method:
[WebMethod]
public Customer GetCustomerByName(string lcName)
{
Customer
oCustomer = new Customer();
if
(!oCustomer.Load(lcName))
return null;
return oCustomer;
}
This method returns a Customer object that contains customer
data as well as an address sub object. This returns an object embedded into the
SOAP response like this:
<GetCustomerResult
xmlns="http://tempuri.org/">
<cLastName>Strahl</cLastName>
<cFirstName>Rick</cFirstName>
<cCompany>West Wind Technologies</cCompany>
<tEntered>2000-10-01T00:00:00.0000000-10:00</tEntered>
<lError>false</lError>
<cErrorMsg
/>
<oAddress>
<cAddress>32 Kaiea Place</cAddress>
<cPhone>(808) 579-8342</cPhone>
<cEmail>rstrahl@west-wind.com</cEmail>
</oAddress>
</GetCustomerResult>
Note that object results are returned as embedded XML
streams rather than XML strings which would be encoded (ie.
the < > tags would be marked with < and
>).
To retrieve this XML from via SOAP you can use the following
VFP code (Listing 29).
loProxy = CREATEOBJECT("MSSOAP.SoapClient")
loProxy.MsSoapInit("http://localhost/codeservice/codewebservice.asmx?WSDL")
loCustomerXMLNodeList = loProxy.GetCustomer(1)
IF loCustomerXMLNodeList.Length > 0
lcXML = loCustomerXMLNodeList.Item(0).parentnode.xml
ShowXML(lcXML) &&
Display the XML
ELSE
? "No data
returned"
ENDIF
Ok, this gives us an XML string what to do with that?
Well, VFP provides no native mechanism to parse this data back into an object.
The SOAP Toolkit provides some helper methods that can help you map this XML
back to an object using the ISoapTypeMapper
interface, but frankly it requires even more code than using the DOM directly
to parse this data and also requires that the object being mapped exists.
The biggest issue in retrieving the data is to format the
contained types properly. wwXML
can help with this and the simple code to do this looks something like this.
First a class must be created on the client to hold the actual data (Listing
30).
DEFINE CLASS Customer as Session
cLastName = ""
cFirstName = ""
cCompany = ""
tEntered = { : }
lError = .F.
cErrorMsg = ""
oAddress = null
FUNCTION Init
THIS.oAddress = CREATEOBJECT("Address")
RETURN
ENDDEFINE
DEFINE CLASS ADDRESS as Session
cAddress = ""
cPhone = ""
cEmail = ""
ENDDEFINE
The class can then be created and the values retrieve from
the DOM like this (Listing 31).
loProxy = CREATEOBJECT("MSSOAP.SoapClient")
loProxy.MsSoapInit("http://localhost/codeservice/codewebservice.asmx?WSDL")
loCustomerXMLNodeList = loProxy.GetCustomer(1)
lcXML = loCustomerXMLNodeList.Item(0).parentnode.xml
*** Now manually parse the object
loXML = CREATEOBJECT("wwXML")
loDOM = loXML.LoadXML(lcXML) && Load MSXML DOM document
loRoot = loDOM.DocumentElement
loCustomer = CREATEOBJECT("Customer")
loCustomer.cCompany =
loXML.XPathValueToFoxValue(loRoot,"cCompany")
loCustomer.cFirstName =
loXML.XPathValueToFoxValue(loRoot,"cFirstName")
loCustomer.tEntered =
loXML.XPathValueToFoxValue(loRoot,"tEntered","datetime")
loCustomer.lError =
loXML.XPathValueToFoxValue(loRoot,"lError","boolean")
? loCustomer.cCompany
? loCustomer.tEntered
? loCustomer.lError
loCustomer.oAddress.cAddress =
loXML.XPathValueToFoxValue(loRoot,"oAddress/cAddress")
loCustomer.oAddress.cPhone =
loXML.XPathValueToFoxValue(loRoot,"oAddress/cPhone")
? loCustomer.oAddress.cAddress
? loCustomer.oAddress.cPhone
As you can see this process is not exactly automatic. The
key thing is to retrieve the XML which is accomplished with:
lcXML = loCustomerXMLNodeList.Item(0).parentnode.xml
The SOAP Toolkit returns an XMLNodeList
which ideally you should check for size first (.Length > 0). You can then
walk up to the parent node to retrieve the entire XML or other wise parse the
XML fragment using the DOM.
I'm using wwXML and some of its
helper methods to read the values from the DOM and properly type and assign
them to the VFP object. The helper method XPathValueToFoxValue() uses an XPath query to retrieve
the text and then convert it into the proper type if specified. If not
specified the string value of the element is returned. The first parameter is
the root node from which the XPath query is executed
which is
<GetCustomerResult
xmlns="http://tempuri.org/">
in the object XML or loDOM.DocumentElement. The method then basically does a SelectSingleNode()
behind the scenes to retrieve the values and calls the internal XmlValueToFoxValue() method to convert the type if
specified. As you can see the Boolean and DateTime
values are properly typed after this code runs.
You might think that it looks like you could automate this
process, right? After all you know what the type information of the class is.
In fact, wwXML includes a method called XMLToObject which could possibly import this object
directly. Unfortunately, there's a problem with type character casing. .NET
returns types in type sensitive format (note the property names are tEntered, cCompany etc.) which is
a problem. There's no way for wwXML to figure out
what the proper casing for the properties is and since XML is case sensitive
when using XPATH queries and AMEMBERS always returns UPPER case property names,
there's no way to match property casing to the XML casing.
If you chose to use only lower case property names in the
.NET class published via the Web Service, wwXML::XMLToObject
would work, but as it stands the longer hand syntax used here is required. The
code above should be stored into a method of the business object most likely as
a type mapper and updated as the classes change.
More Complex Types: DataSets
Another common type that might be returned from a .NET Web
Service is a DataSet or an updategram
(which is really just a specialized DataSet with just
the changes). I previously showed how you can utilize wwXML
to convert XML from a DataSet into a VFP cursor.
Listing 32 shows how to do it with the results from a Web Service.
loProxy = CREATEOBJECT("MSSOAP.SoapClient")
loProxy.MsSoapInit("http://localhost/codeservice/codewebservice.asmx?WSDL")
loAuthorDsXML = loProxy.GetAuthorData("")
IF loAuthorDsXml.Length > 0
lcXML =
loAuthorDsXML.item(0).parentNode.xml
ShowXML(lcXML)
ELSE
? "No data
returned in dataset"
return
ENDIF
*** Must precreate the cursor
CREATE CURSOR TAuthors (au_id c(12), au_lname c(20),
au_fname c(20),;
phone c(20), ADdress M,State c(2),Zip c(8),;
contract L, pk I)
loXMl = CREATEOBJECT("wwXML")
loXML.DataSetXMLToCursor(lcXML,"TAuthors","Authors")
BROWSE
The pre-requisite here is that you are required to precreate the cursor so that wwXML
can figure out which fields to retrieve from the XML stream and what type to
convert them to. It's also required in order to figure out the field lengths
which are not provided as part of the dataset.
What about going the other way? Sending data to XML from the
client to the server? The easiest way to do this is to use VFP's
native CURSORTOXML function and send the result back to the Web Service as a
string. Then use import the cursor using the DataSet's
ReadXml()
method as described earlier in the ASP section. As of right now wwXML doesn't include a mechanism to create a DataSet directly from data this is mainly because ReadXml()
serves the import functionality just fine. A future version will provide this
functionality. A future version of VFP hopefully too will provide more direct
support for DataSets to facilitate the process of
passing data back and forth more easily via XML.
Keep in mind that the facilities I've described here for DataSet conversion into cursors is very minimal and doesn't
take advantage of some of the cool features that DataSet
provide including auto-updates and persistence. It is possible to build this
type of functionality by building a translation layer for the Fox data
semantics of data updates (TableUpdate() and XML Diff
Grams for example) and map them to what .NET expects to provide some semblance
of full DataSet compatibility. But this process would
be a lot of work and given the data model differences probably not worth the
effort. If you really need all the functionality DataSets
provide, it's probably a good idea to start thinking about using .NET native
code to build that functionality, or at the very least built wrappers that are
more easily callable from the VFP client utilizing the functionality of .NET
rather than re-implementing the functionality in VFP. I think this is a common
theme throughout these interop technologies I've
described in this article.
Interop Summary
Phew is your head spinning with all this information?
There's a lot of info crammed into this one article, and I have a feeling it
will only get bigger over time. In fact some of the topics will probably break
out into separate articles with even more detail for each technology.
I hope this document gives you a pretty good idea on where
to start with your .NET VFP integration tasks and some tools and ideas that
give you a head start on providing useful functionality for applications that
need to use both .NET and VFP technologies in tandem.
.NET provides the tools to make this integration relative
painless, but realize that the mechanisms described here are meant mainly for
backwards compatibility with existing technology rather than technology that's
moving forward. Microsoft is definitely betting on .NET for the future, and the Interop mechanisms
I described here are one way to provide a link with the existing code base that
exists today. Interop gives you the opportunity to
ease into .NET without having to start totally from scratch and being able to
support both the old and the new simultaneously.
Just keep in mind that there's a penalty involved for this
the overhead of .NET, the installation issues, versioning and security. So,
just because the technology is there it doesn't mean that you should
immediately run out and integrate it. Make sure it fits your needs and
especially fits your business, development and installation requirements before
jumping in. But you can be assured that when the decision is made the tools are
there for you to integrate VFP and .NET.
